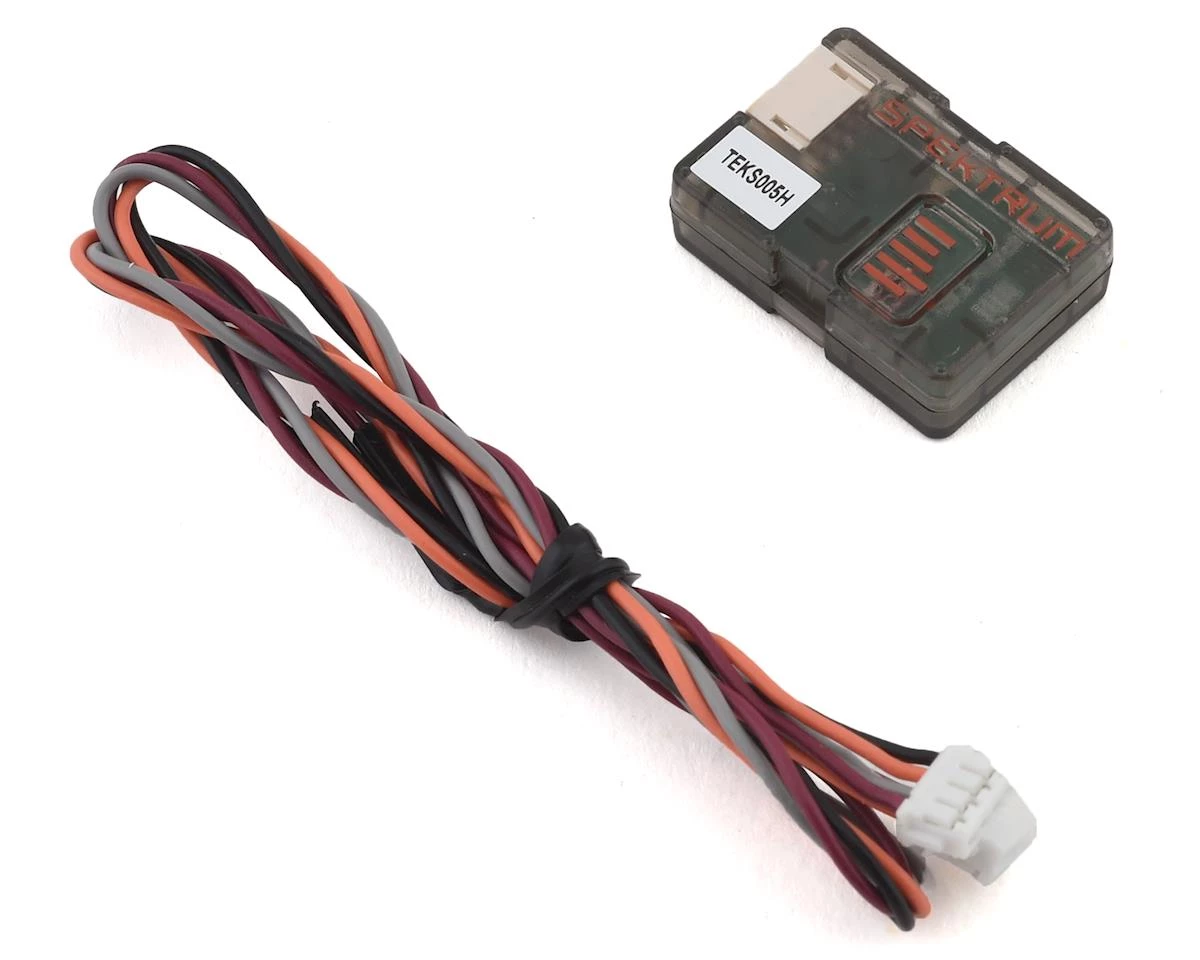

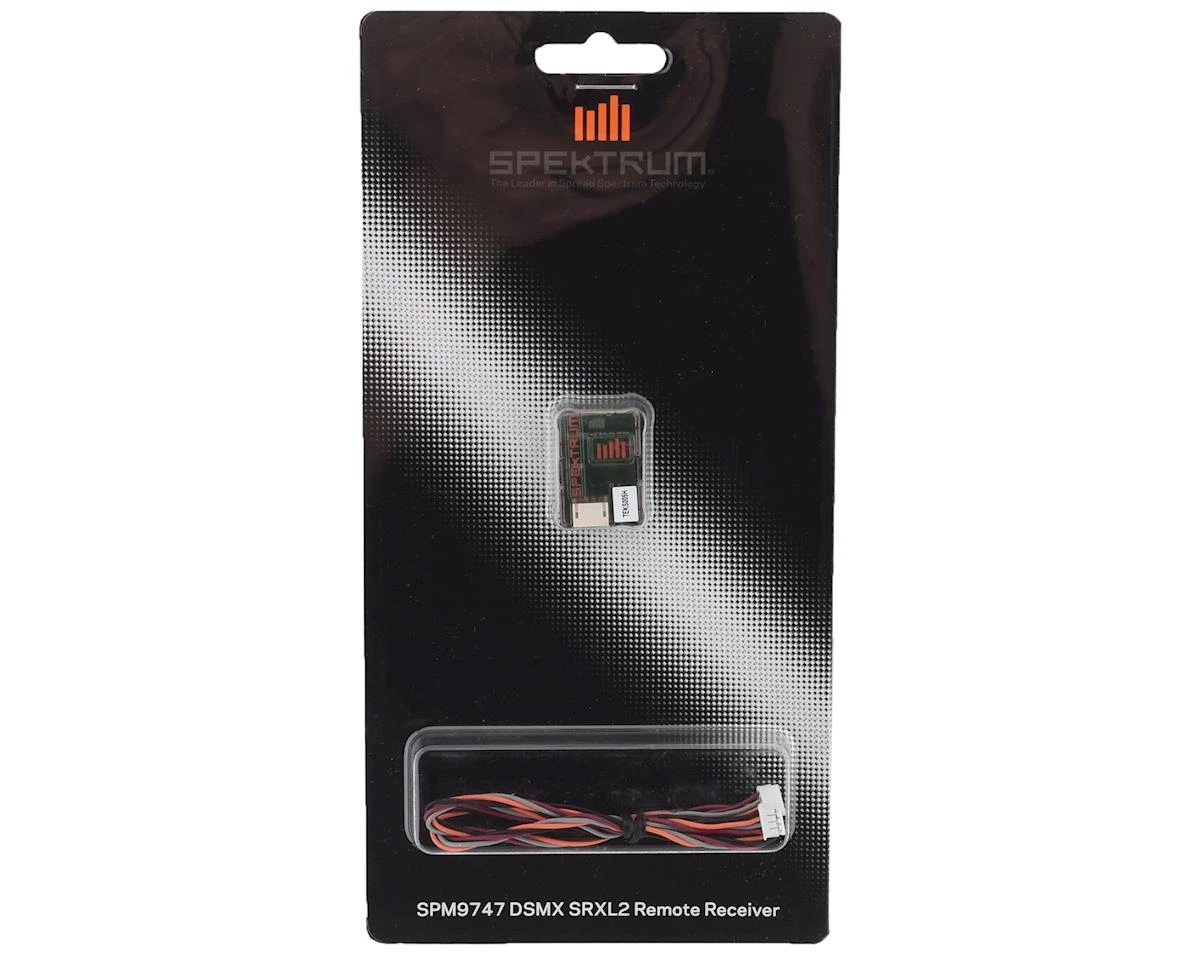

Spektrum RC SRXL2 DSMX Remote Receiver
Spektrum RC SRXL2 DSMX Remote Receiver - Image 2
Spektrum RC SRXL2 DSMX Remote Receiver -Spektrum RC shop spm9747 1

Spektrum RC SRXL2 DSMX Remote Receiver

$39.99 Original price was: $39.99.$23.99Current price is: $23.99.

Buy Now
SKU: 1049209 Categories: Electronics, Helicopters, Receivers Tag: Spektrum RC
  • 7-Day Returns, 100% Quality
  • The quality solution for all your needs.
  • Shop with Zero Worries
  • Unbeatable Quality Guaranteed
Browse
  • Batteries
    • Battery Checkers/testers
    • Lipo
      • Flight Batteries
        • 6s (22.2v)
      • Transmitter Batteries
        • Li-poly
    • Lipo - Lihv
      • Car Batteries
        • 2s (7.4v)
        • 3s (11.1v)
        • 4s (14.8v)
        • 5s - 6s (18.5v - 22.2v)
      • Receiver Batteries
        • Life
    • Nickel
  • Charging
    • Battery Chargers
      • Ac
      • Dc
    • Power Supplies
  • Electronics
    • Electric Motors & Esc's
      • 1/10 Scale
        • Esc Controllers
          • Brushless
        • Esc/motor Combos
      • 1/8 Scale
      • Electronic Speed Controls
        • Airplanes
      • Large Scale
        • High Voltage
      • Micro
        • Electric Motors
    • Extension Leads
    • Gyros & Governors
    • Power Switches
    • R/c Simulators
    • Receivers
    • Servos
      • Mini & Micro
        • Digital
      • Standard
        • Analog
        • Helicopter Tail
    • Simulator Accessories
    • Telemetry
      • Accessories
      • Sensors
        • Helicopters
    • Trainer Cords
    • Transmitter Neck Straps
    • Transmitters
      • Boats
  • Fpv Gear
    • Antennas
      • Fpv Racing
  • Parts
    • Esc Parts & Accessories
    • Replacement Parts
      • Arrma
        • Cars & Trucks
        • Granite
        • Typhon
      • Axial
        • Yeti
      • Blade
      • E-flite
        • Habu
        • Pitts S-1s
        • T-28 Trojan
      • Hobbyzone
      • Losi
        • Rock Crawlers
    • Servo Parts
    • Transmitter Parts
  • Storage
    • Transmitter Cases & Inserts
      • Transmitter Case Inserts
      • Transmitter Cases
  • Uncategorized
  • Description
  • Reviews (0)

The Spektrum SPM9747 DSMX SRXL2 Remote Receiver is used to provide additional path diversity using Spektrum’s patented MultiLink technology to avoid reflected signal fading and polarization blind spots at long range from the transmitter. The Spektrum SPM9747 SRXL2 is compatible with all receivers that utilize SRXL2 remote receivers (4-pin connector). It features an integrated antenna design inside the case to provide easy installation and worry free performance.

SRXL2 Technology

SRXL2 is a powerful bi-directional communications protocol that improves the speed, security, and richness of data transfer between your radio system and compatible on-board devices such as flight controllers and Smart ESCs. You’ll also enjoy more responsive telemetry that can be customized precisely to your needs. Want to learn more about SRXL2? Visit the SRXL2 Homepage.

Integrated Antenna Design
The SPM9747 DSMX SRXL2 Remote Receiver features an integrated antenna design that allows for quick and easy installation and eliminates concern for damaging wire antennas.

NOTE: The SPM9747 DSMX SRXL2 Remote Receiver is not compatible with receivers that use 3-wire remote receivers. The main receiver unit must be compatible with a 4-wire SRXL2 remote receiver. The SPM9747 is only compatible with receivers that feature SRXL2 such as the AR637T and AR6610T receivers.

Features:
  • SRXL2 Technology
  • Integrated antenna design for easy installation
  • DSMX and DSM2 compatible
  • Lightweight
  • 22ms and 11ms Compatible
  • Includes 12 inch extension (other lengths are available)
Specifications:
Band: 2.4GHz
Bind Method: Bind Button
Data Port: No
Failsafe: Yes
Input Voltage: 3.3 – 8.4V
Product Height: 0.30″ (7.52mm)
Product Length: 1″ (25.4mm)
Product Weight: 0.1oz (3g)
Product Width: 0.71″ (18.11mm)
Programmable: No
Range: Full
Rev Limiter: No
Technology: Smart Technology
Telemetry: Integrated

This product was added to our catalog on October 22, 2020
