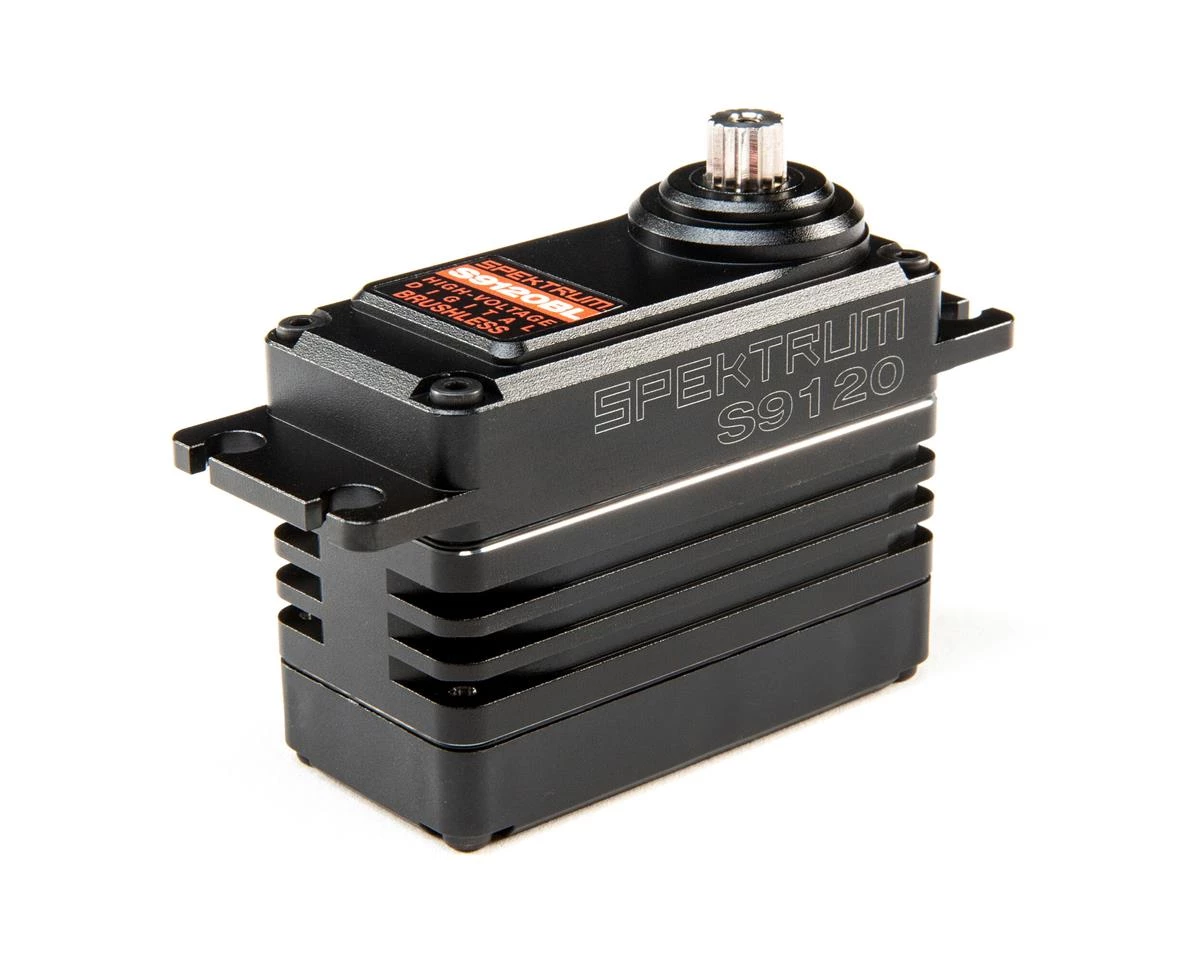

Spektrum RC S9120BL 1/5 Brushless High Torque Metal Gear Servo (High Voltage)
Original price was: $224.99.$83.00Current price is: $83.00.
- 7-Day Returns, 100% Quality
- The quality solution for all your needs.
- Shop with Zero Worries
- Unbeatable Quality Guaranteed
The Spektrum S9120BL 1/5 Digital Brushless High Speed High Torque Metal Gear Servo was developed to give 1/5 enthusiasts the huge torque and precision that can only come from brushless technology. Starting with a full aluminum case design with improved support for pins holding the gears, and an aluminum top plate with re-designed bearing house, the S9120 is tough. Brushless motor technology delivers more power than any previous Spektrum servo – the S9120 is rated at 1454 oz-in of torque, with a speed of 0.21 sec/60? at 8.4V. Additional improvements include a stealth black design and a thicker 18awg detachable wire. Plus, this servo is already race proven, having won the 2020 1/5 Worlds Buggy Class at So Cal Nitro.
Specifications:
Application:Â 1/5 scale off-road
Bushing Or Bearing:Â Bearing
Connector Wire Gauge:Â 18 AWG
Connector Wire Length:Â 6 in (152mm)
Deadband:Â Micro sec: <1
Gear Material:Â Steel
Height:Â 1.84 in (27.2mm)
Length:Â 2.47 in (62.7mm)
Motor Type:Â Brushless
Servo Operating Voltage:Â 6.0 – 8.4V (HV)
Servo Size Category:Â Custom
Speed:Â 0.29 sec/60 deg @ 6.0V, 0.23 sec/60 deg @ 7.4V, 0.21 sec/60 deg @ 8.4V
Spline Count:Â 15 Teeth (15T Mega)
Torque:Â 1173oz-in (84.47 kg-cm) @ 6.0V, 1209 oz-in (87.06 kg-cm) @ 7.4V, 1453.5 oz-in (104.66 kg-cm) @ 8.4V
Type:Â Surface
Weight:Â 6.3 oz (178.6g)
Width:Â 1.18 in (30mm)
This product was added to our catalog on June 30, 2020
