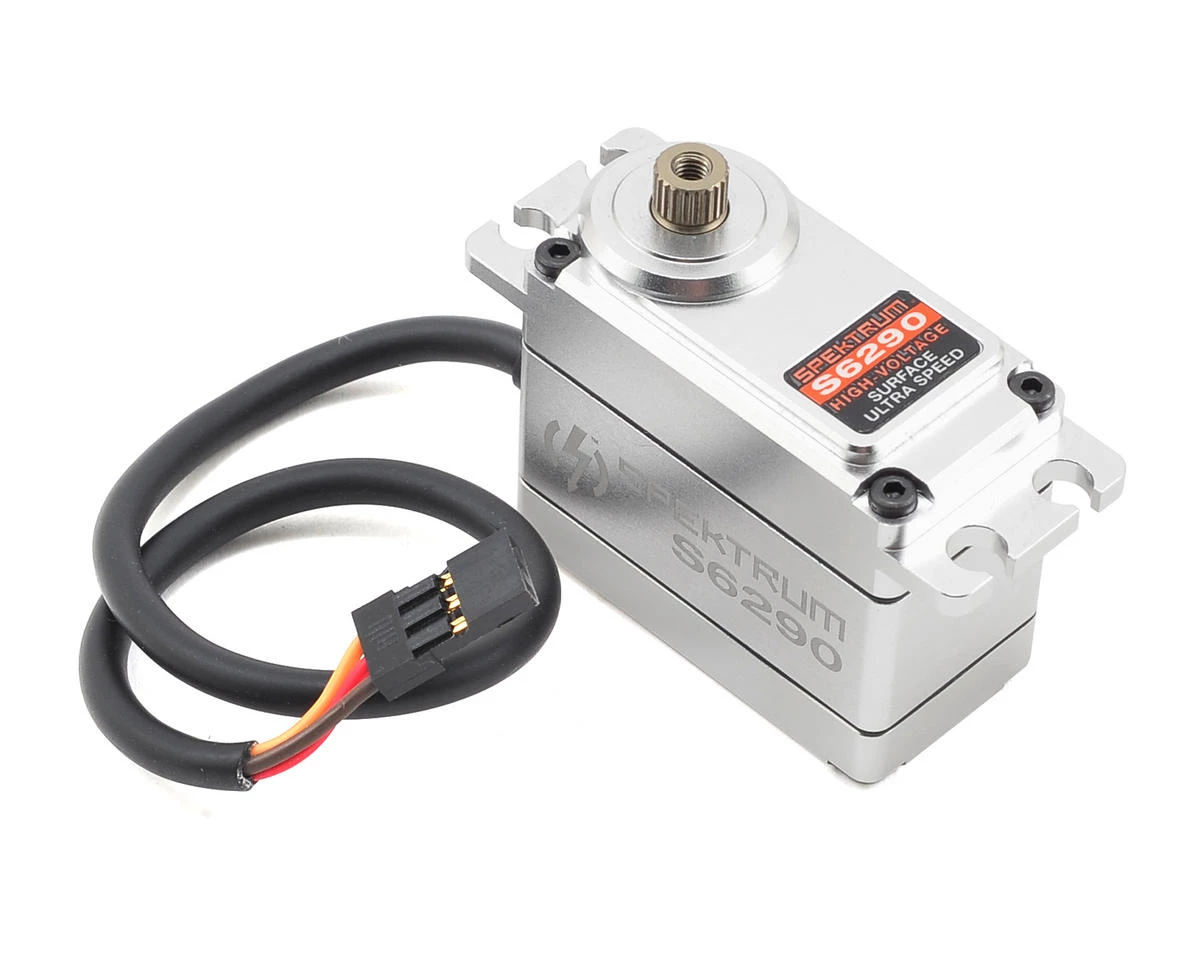

Spektrum RC S6290 Ultra Speed Servo (High Voltage/Metal Case)

The Spektrum S6290 Ultra Torque servo is a full featured all aluminum servo, loaded with a high voltage motor, and metal gear train engineered for tight mesh, low wear, and smooth operation. This combination of engineering choices allow this servo to be very flexible in operation, in that it can be used in any 1/10 or 1/8 class of vehicle.

Key Features:

• High Voltage capabilities for improved speed and torque ratings
• Removable wire harness with different lengths available
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Aluminum case for good heat dissipation
• Aluminum mounting tabs
• NMB dual main bearings
• 23T output shaft

Specifications:

• Size Category: Standard
• Type: Digital
• Application: 1/8 Off-Road
• Torque:
• 238 oz-in (17.1kg-cm) @ 6V
• 292 oz-in (21.0kg-cm) @ 7.4V
• 331 oz-in (23.8kg-cm) @ 8.4V
• Speed:
• 0.09 sec/60 deg @ 6.0V
• 0.08 sec/60 deg @ 7.4V
• 0.07 sec/60 deg @ 8.4V
• Length: 1.61 in (41mm)
• Width: 0.82 in (20.9mm)
• Height: 1.38 in (35.1mm)
• Weight: 2.8 oz (79.4g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Coreless
• Connector Type: Z-connector
• Gear Type: Metal
• Gear Material: Steel, Aluminum
• Current Draw Idle: 10.2mA @ 6.0V
• Current Draw Stall: 4900mA @ 6.0V

This product is expected to become available for purchase on Wednesday, November 16, 2022
