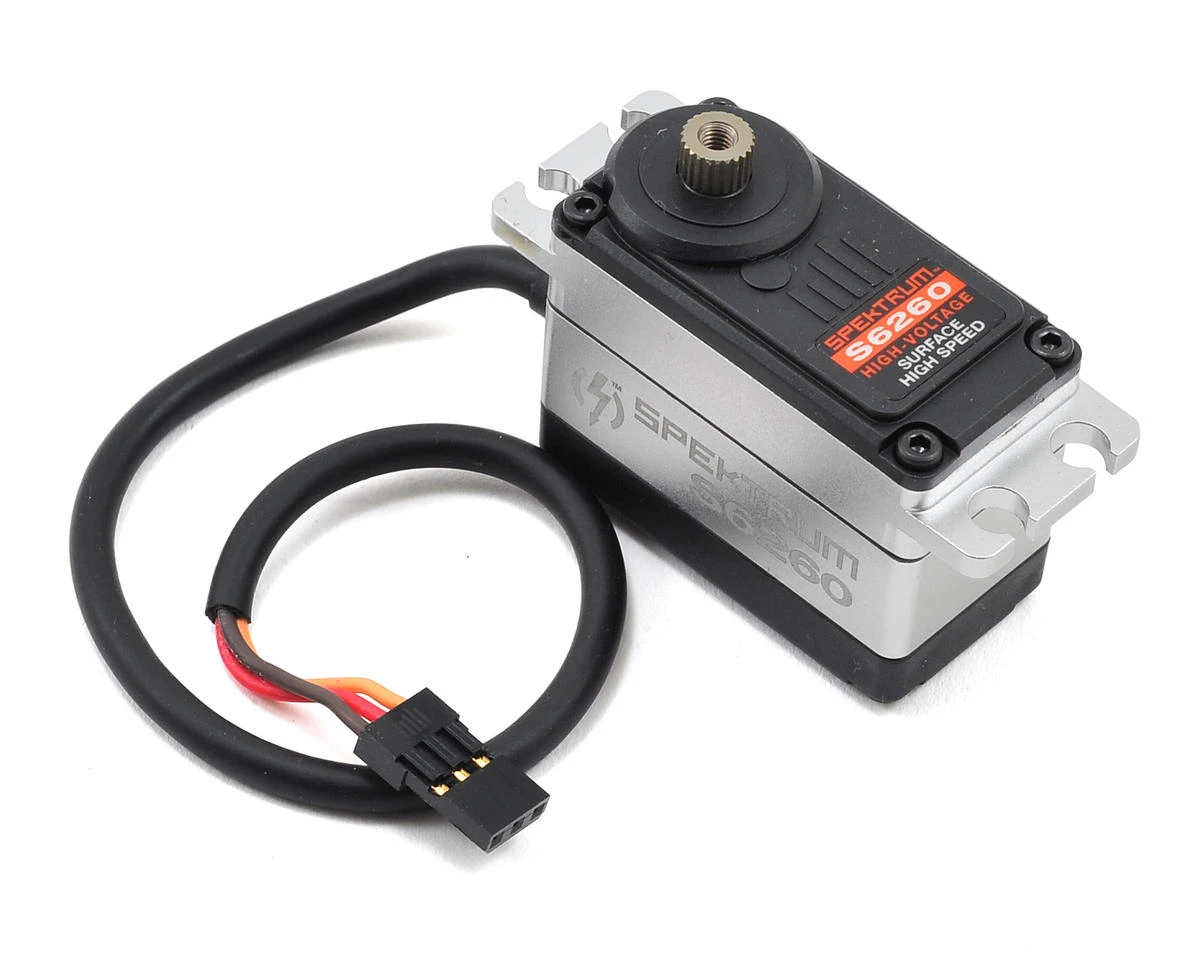

Spektrum RC S6260 Digital High Speed Low Profile Servo (High Voltage)

The Spektrum S6260 is a high voltage upgrade from Spektrum’s budget minded S6240 series servo. Offering all the same benefits in a slim package, but packing a major upgrade in speed and torque with the addition of a high voltage capable motor. The S6260 supports a standard servo mounting form factor, which makes it a universal fit for 1/10 class vehicles.

Key Features:

• High Voltage capabilities for improved speed and torque ratings
• Removable wire harness with different lengths available
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Aluminum case for good heat dissipation
• Aluminum mounting tabs
• NMB dual main bearings
• 23T output shaft

Specifications:

• Size Category: Specialty
• Type: Digital
• Application: 1/10 Buggy, Truck, 1/8 Buggy, Truck
• Torque:
• 167 oz-in (12.0kg-cm) @ 6V
• 210 oz-in (15.1kg-cm) @ 7.4V
• 241 oz-in (17.4kg-cm) @ 8.4V
• Speed:
• 0.08 sec/60 deg @ 6.0V
• 0.07 sec/60 deg @ 7.4V
• 0.06 sec/60 deg @ 8.4V
• Length: 1.61 in (41mm)
• Width: 0.82 in (20.8mm)
• Height: 1.25 in (31.8mm)
• Weight: 2.3 oz (65.2g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Coreless
• Connector Type: Z-connector, removable
• Gear Type: Metal
• Gear Material: Steel, Aluminum
• Current Draw Idle: 9.8 mA @ 6.0V
• Current Draw Stall: 4900mA @ 6.0V

This product was added to our catalog on February 17, 2016
