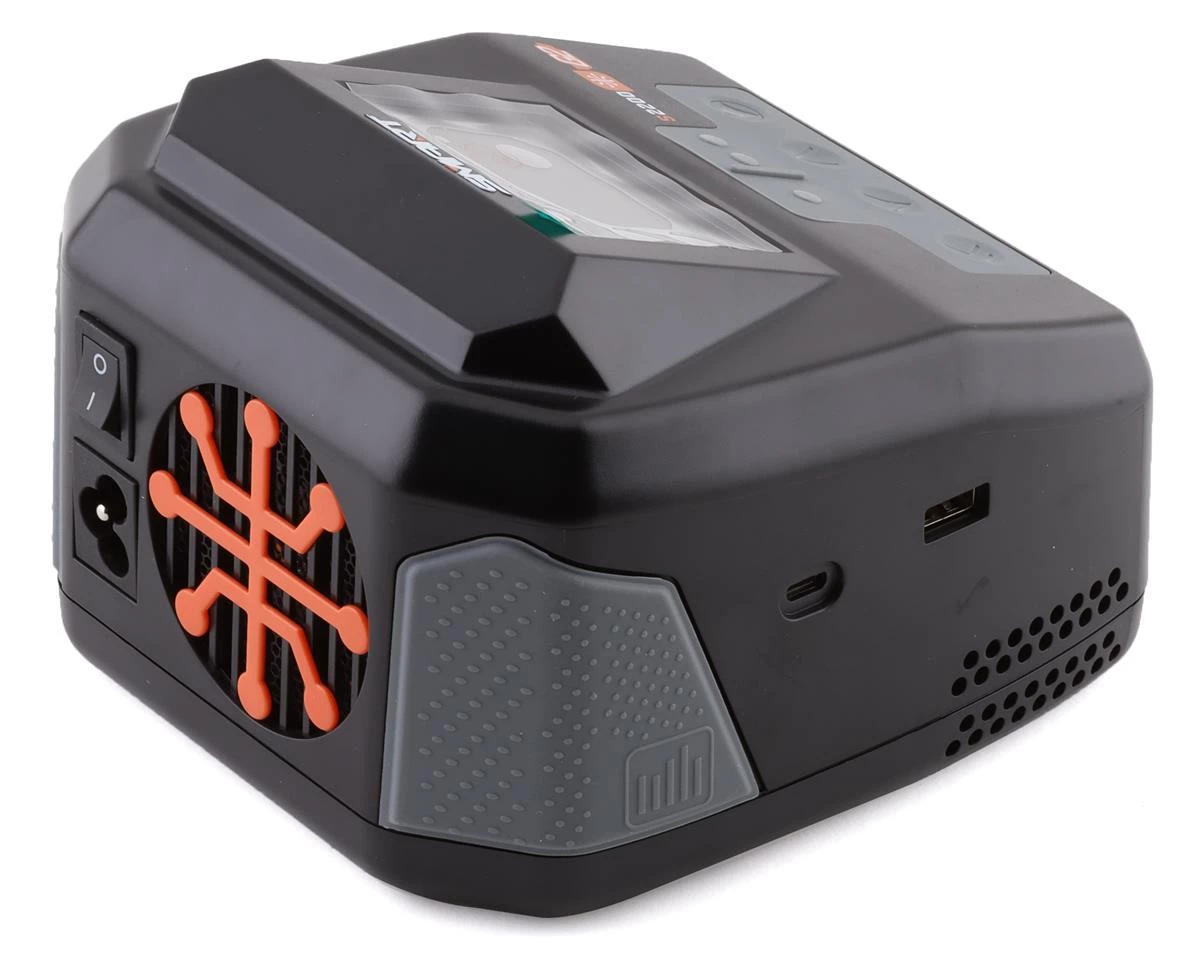

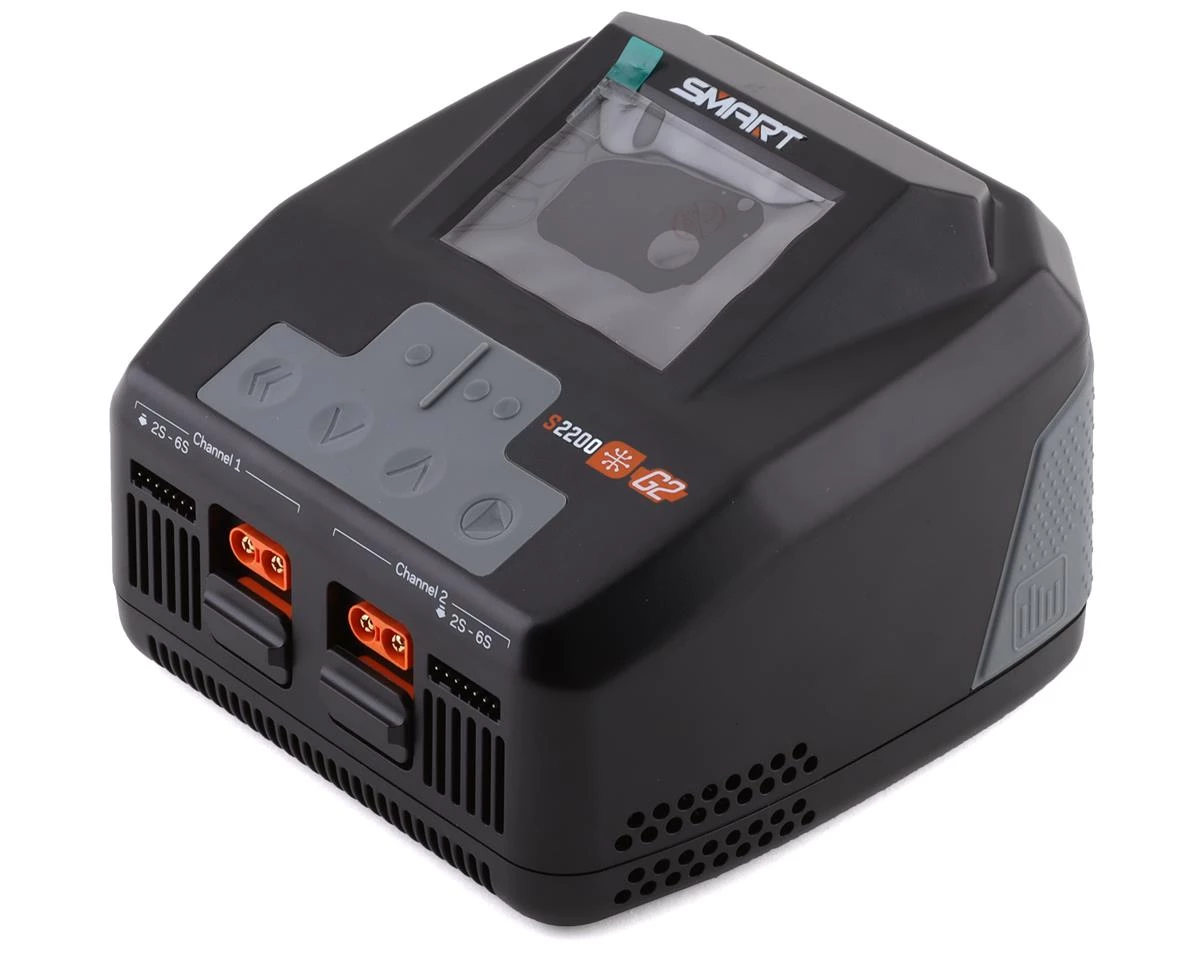

Spektrum RC S2200 G2 AC LiPo Smart Charger (6S/20A/200W x2)

This is the Spektrum RC S2200 G2 AC LiPo Smart Charger, with two channels with up to 200W per channel. The Spektrum S2200 Smart G2 AC Charger offers fast, easy charging, especially for modelers using Smart batteries — with Auto Charge simplicity, one-connection balancing, IC3 or IC5 output ports, and more.

• Up to 200W power per channel or 380W on one channel for fast charging
• Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection — no separate balance lead needed
• Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
• Charges virtually any RC battery (use Smart batteries to benefit from all charger features)
• Smart software tracks and stores numerous smart battery data
• Includes IC3® and IC5® charging output ports — eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries

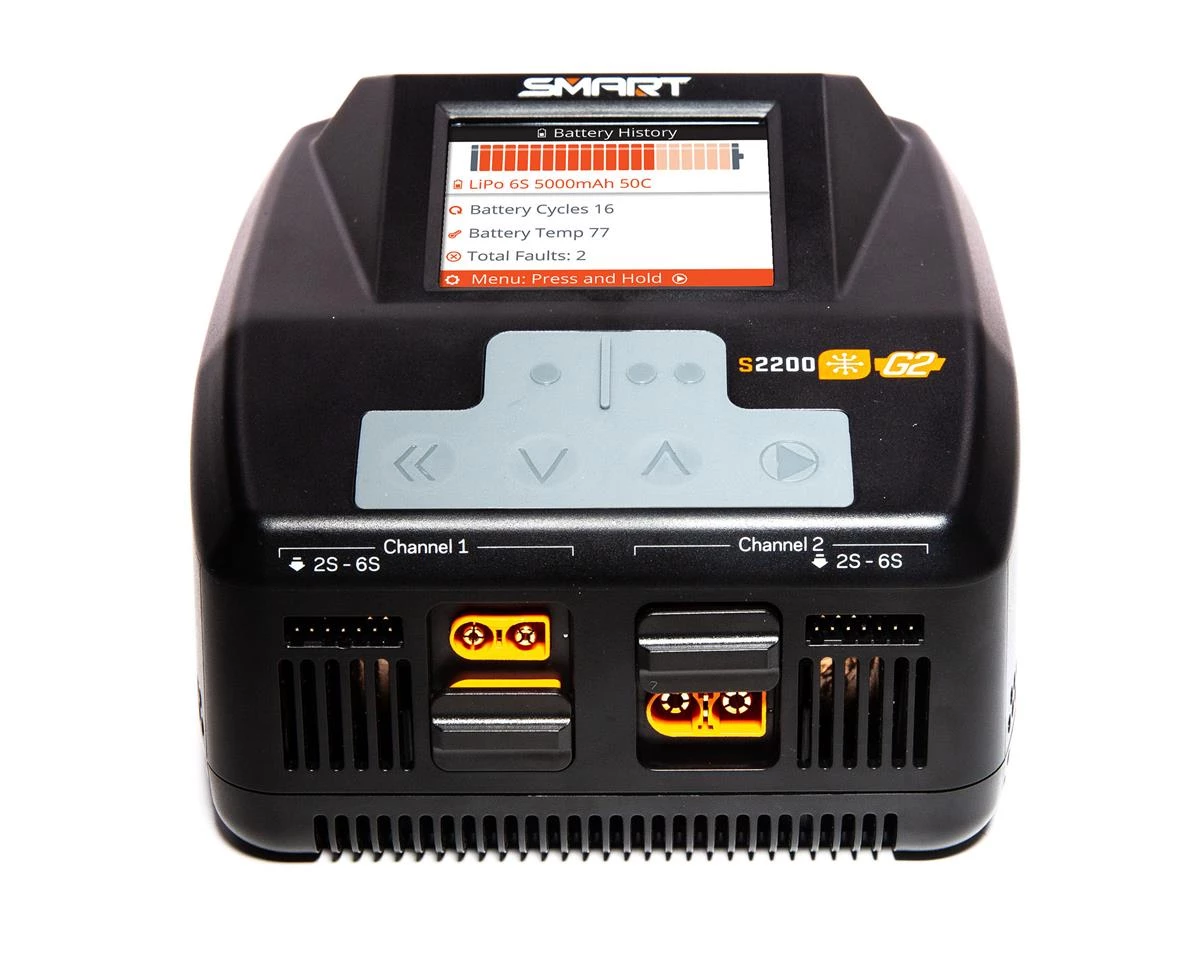

• Large, 2.8″ display screen
• An on-screen clock counts down remaining charge time until your Smart battery is fully charged and ready to use
• Updated user interface features fresh, intuitive menus, icons and navigation tools, plus non-slip, easy to use buttons
• USB input and output ports are included for updating firmware and charging secondary devices
• ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control
• Detachable power cord makes transporting more convenient

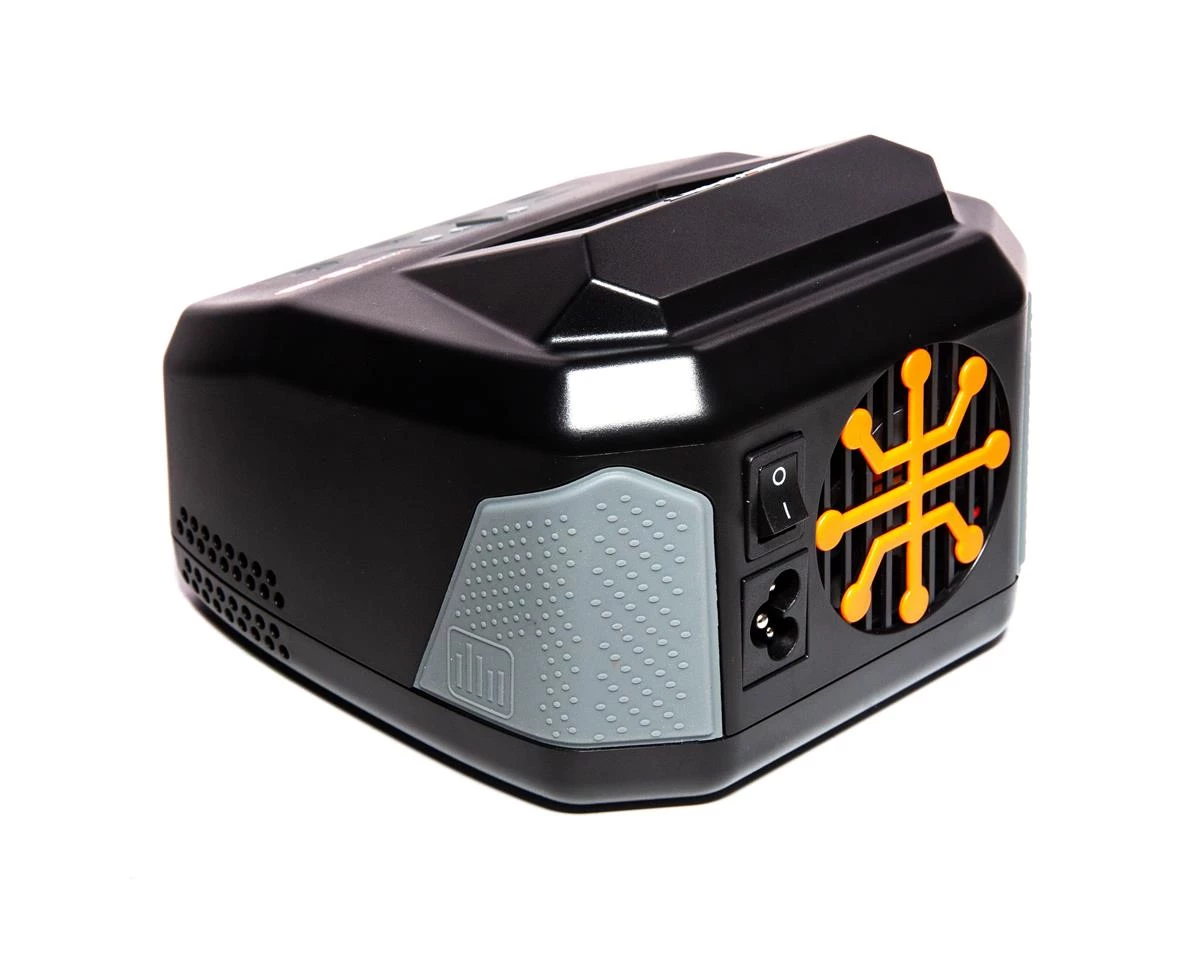

• Includes an efficient, low-noise cooling fan
• Sleek, sturdy case fits well on a workbench and in pit or field bags
• Handy rubber grips on case make it easier to plug in and remove batteries
• IC3® and IC5® connectors are backwards compatible with EC3™ and EC5™ connectors

Normal/Standard Charge Rate: 0.1 – 20.0A

Product Width: 5.67″ (144 mm)

Technology: Smart

Application: RC Model Battery Charger

Reverse Polarity Protection: Yes

Selectable Charge Rate: Yes

Software Updates: Yes

Hard Case: Yes

Over Current Protection: Yes

Integrated Balancing: Yes – Internal Balancer & Internal Adapter

Charge Protection Circuitry: Yes

Input Voltage: 100 – 240V AC

Maximum Continuous Discharge Rate: 1.5A

Output: 2 x 200W, or 380W on one channel

Battery Balance Connector: JST_XH

Maximum Charge Rate: 20A

Low Input Voltage Protection: Yes

PC Connectivity: Yes

Product Weight: 37.7oz (1070g)

Discharge: 0.1 – 1.5A

Number of Cells: 1 – 6S LiPo, LiIon, LiFe, 1-16 cell NiMH, NiCd, 1-12 cell Pb

Safety Timer: Yes

Short Circuit Protection: Yes

Amp Meter: Yes

Product Height: 4.13″ (105 mm)

Product Length: 5.7″ (145 mm)

Voltage Meter: Yes

Display: 2.8″ LCD

Output Connector: IC3 and IC5 selectable

Peak Detection: Yes

Thermal Protection: Yes

Programmable: Yes

Battery Temperature Monitoring: Yes

Cooling Method: Fan

• (1) S2200 Smart G2 AC Charger

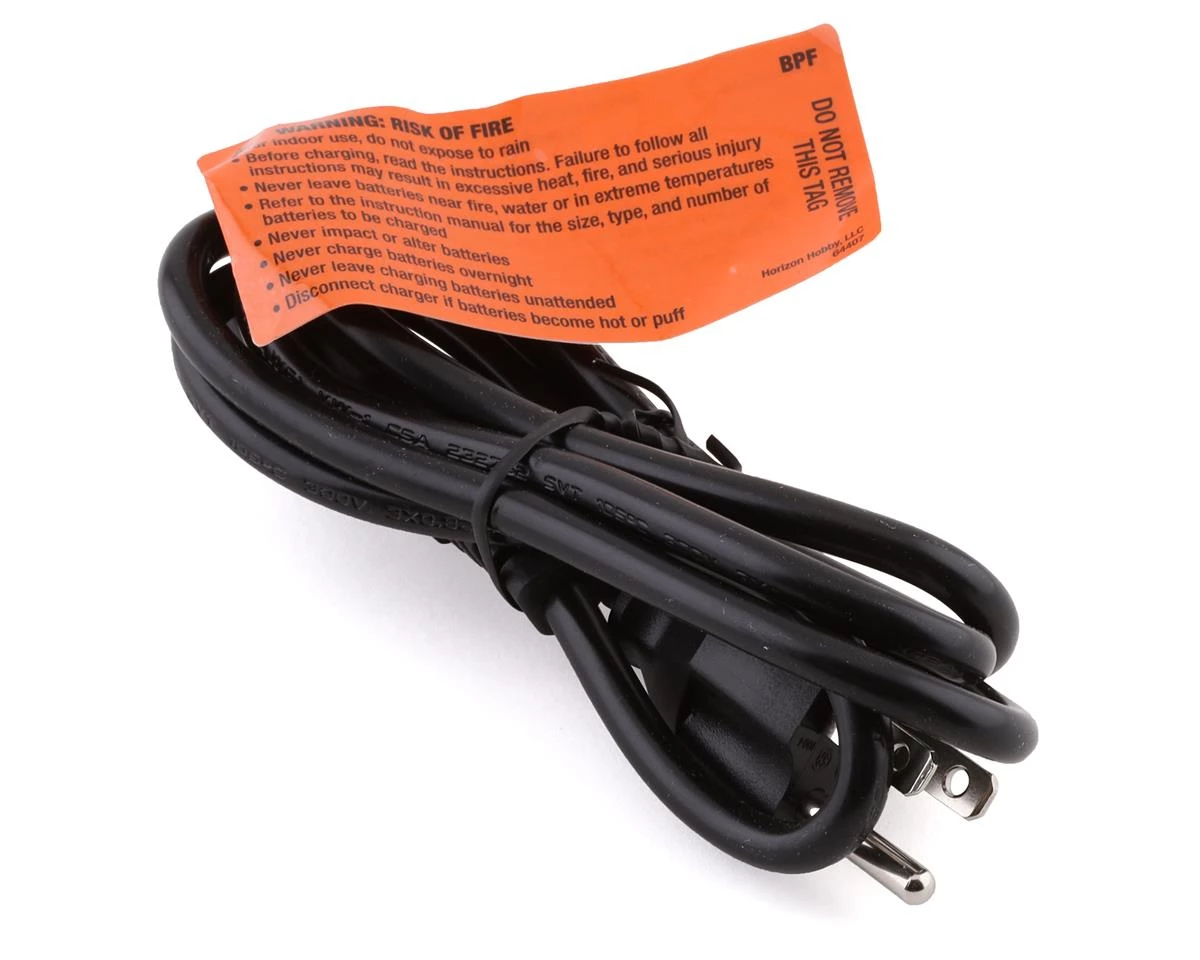

• (1) Power Cord
• (1) Manual
