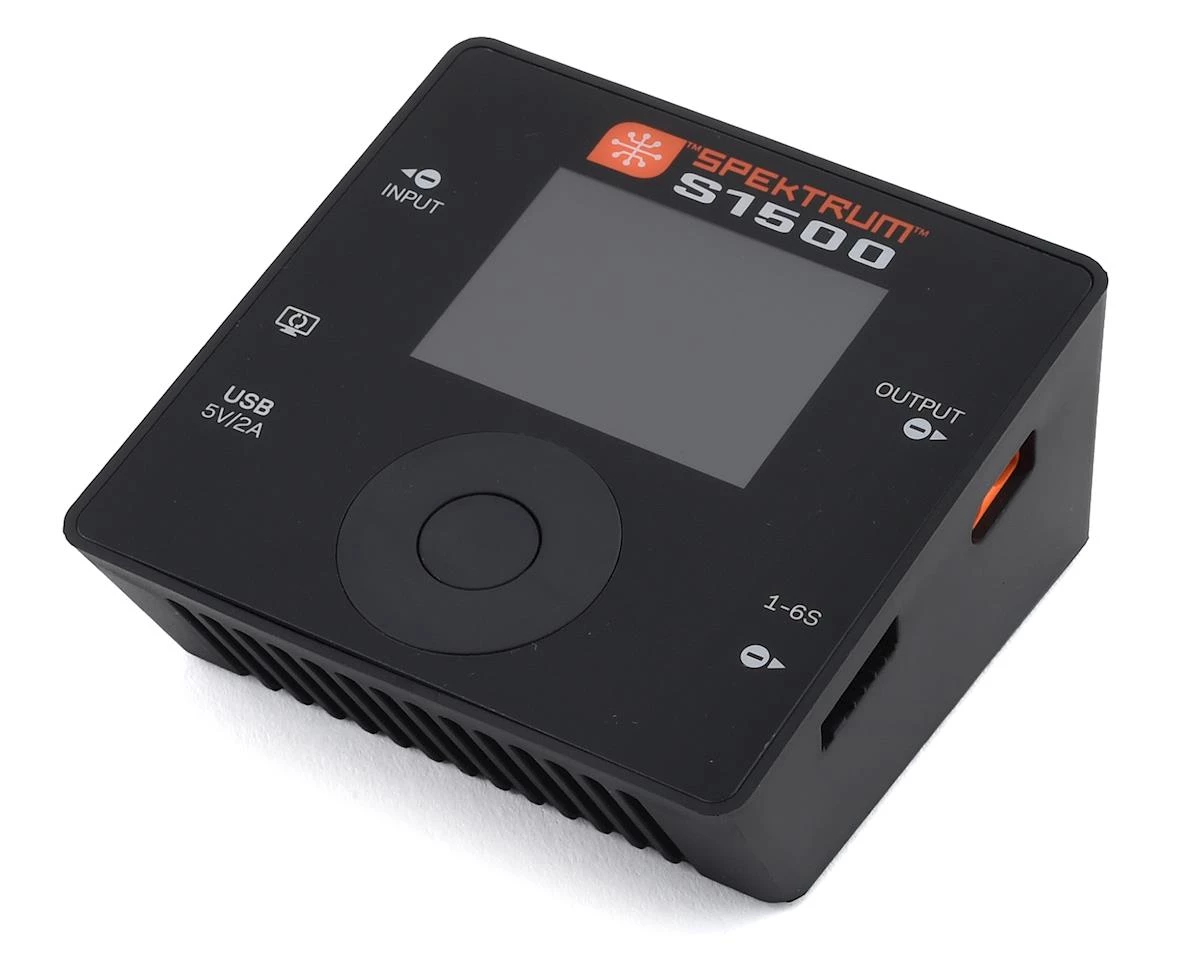

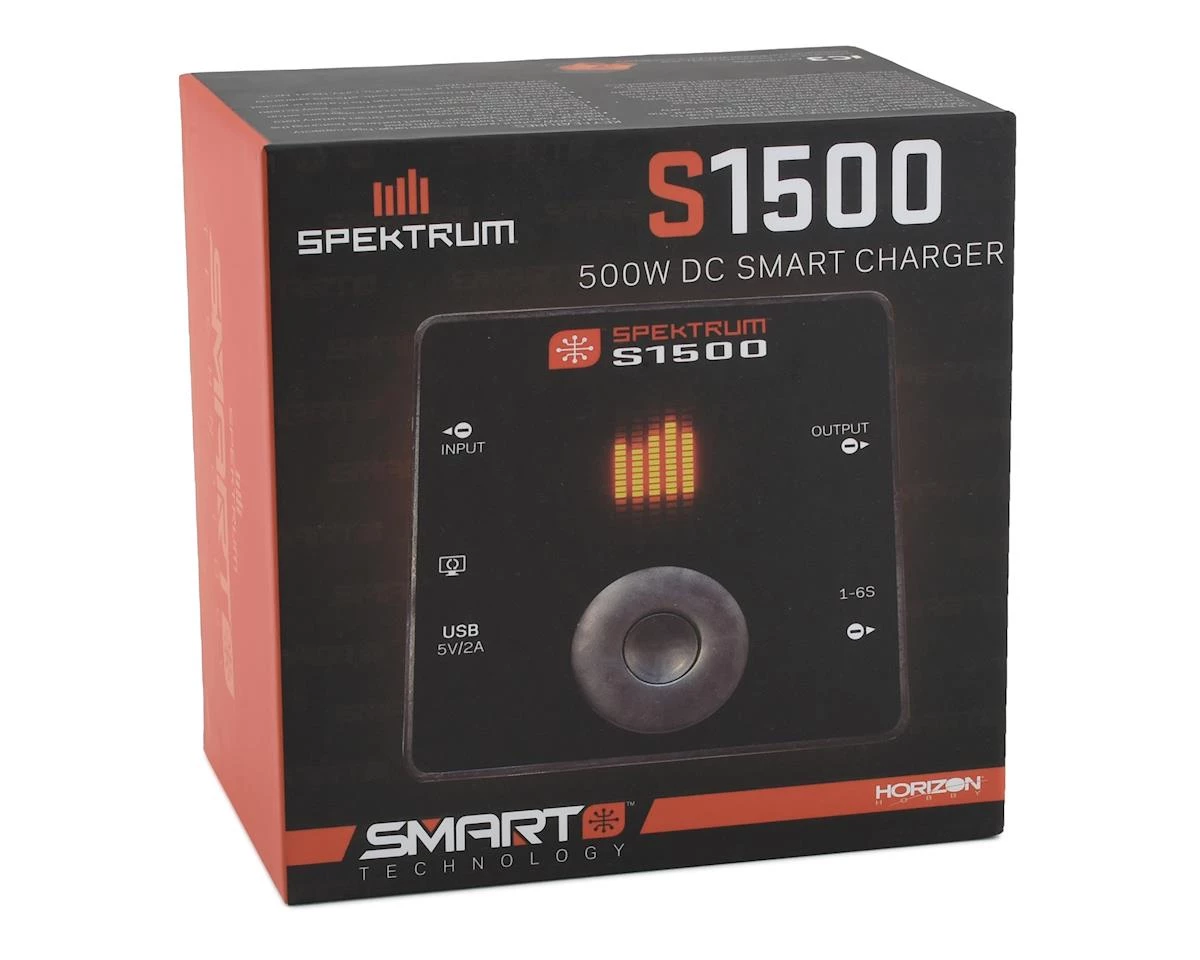

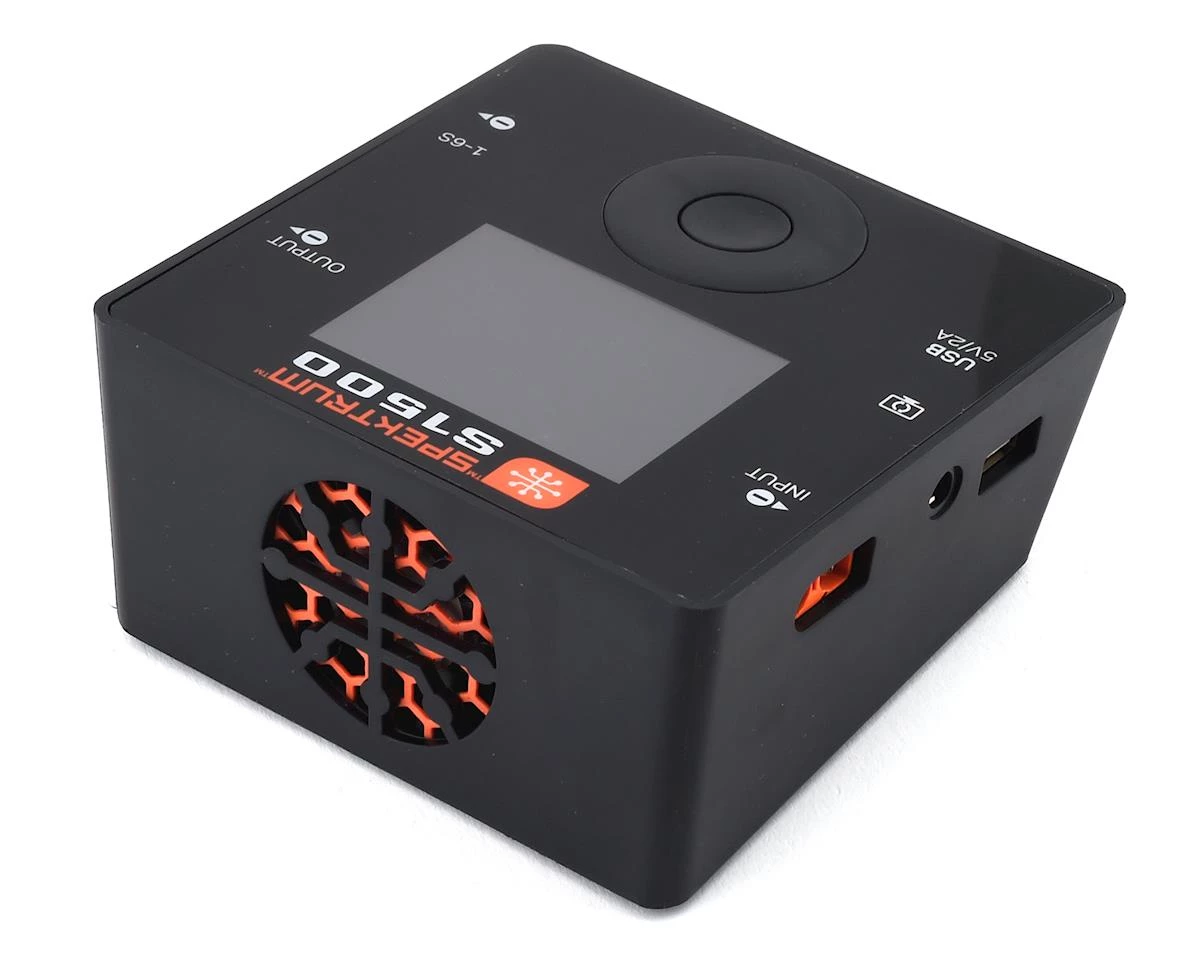

Spektrum RC S1500 DC LiPo Smart Charger (20A/500W)

The Spektrum Smart S1500 DC LiPo Smart Charger is perfect for large batteries that require large amounts of charging power. Compact enough to carry in a pocket or field bag, the S1500 easily goes with you to the field, track, or any place where you need to charge your LiPo and NiMH batteries.

The S1500 charger’s improved, extra-precise scroll wheel interface simplifies setup. When used with Spektrum Smart LiPo batteries having IC3 or IC5 connectors, the S1500 also uploads specific parameters and health data from the battery’s integrated memory chip and displays it on the bright LCD screen for review — giving you the information you need to evaluate your packs and make the best charging decisions.

For input power, use a Spektrum Power Supply unit (SPMXC10201, available separately) or any compatible DC power source with the included IC3 power cable adapter. The S1500 charger has a USB port, a software update port, plus a safety timer and protection against heat, reverse polarity, short circuit, over-current, and low input voltage.

Features:

• High 500W output quickly charges large, high-capacity and high cell count batteries with ease
• Ideal for use with Spektrum™ Smart batteries featuring the IC3 or IC5 connector
• Smart Technology recognizes unique Smart battery data for safe, convenient charging
• Can also be used to charge batteries without Smart Technology
• Enhanced touch wheel interface improves setup ease and precision
• 2.4-inch LCD screen with auto-brightness is easy to read even in extreme sunlight
• Compact design with rounded edge fits in a bag or pocket for easy carrying
• Internal cooling fan maintains a safe, efficient operating temperature

Specifications:
Application: Battery Charger for Electric Powered RC Vehicles and Aircraft
Battery Balance Connector: JST-XH
Battery Temperature Monitoring: Yes, Temperature Sensor Included
Battery Type: 1-6S LiPo, LiFe, LiHv / 1-16C NiMH, NiCd, Pb
Circuit Breaker: Yes
Cooling Method: Fan
Display: 2.4″ 320×320 IPS LCD
Height: 1.9″ (50mm)
Input Voltage: 8-30V
Integrated Balancing: Y – Internal Balancer & External Adapter
Length: 3.7″ (95mm)
Low Input Voltage Protection: Yes
Material: Plastic Case
Maximum Charge Rate: 26.1V, 20A
Model Memory: Smart ID
Output Connector: IC3 (compatible with EC3)
Over Current Protection: Yes
PC Connectivity: Yes – USB, external adapter required
PC Required: No
Peak Detection: Yes
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes – Incremental (0.1A Increments)
Short Circuit Protection: Yes
Software Updates: Yes, via USB Port
Thermal Protection: Yes
Type: DC Powered Smart Battery Charger
Weight: 8.5oz (240g)
Width: 3.8″ (97mm)

Includes:

• (1) Spektrum™ S1500 DC Smart Charger
• (1) IC3™/Banana Power Supply Cable
• (1) Product Manual

Needed to Complete:

• Spektrum™ Power Supply unit (see Completion Guide or Optional Accessories) or any compatible DC power source
