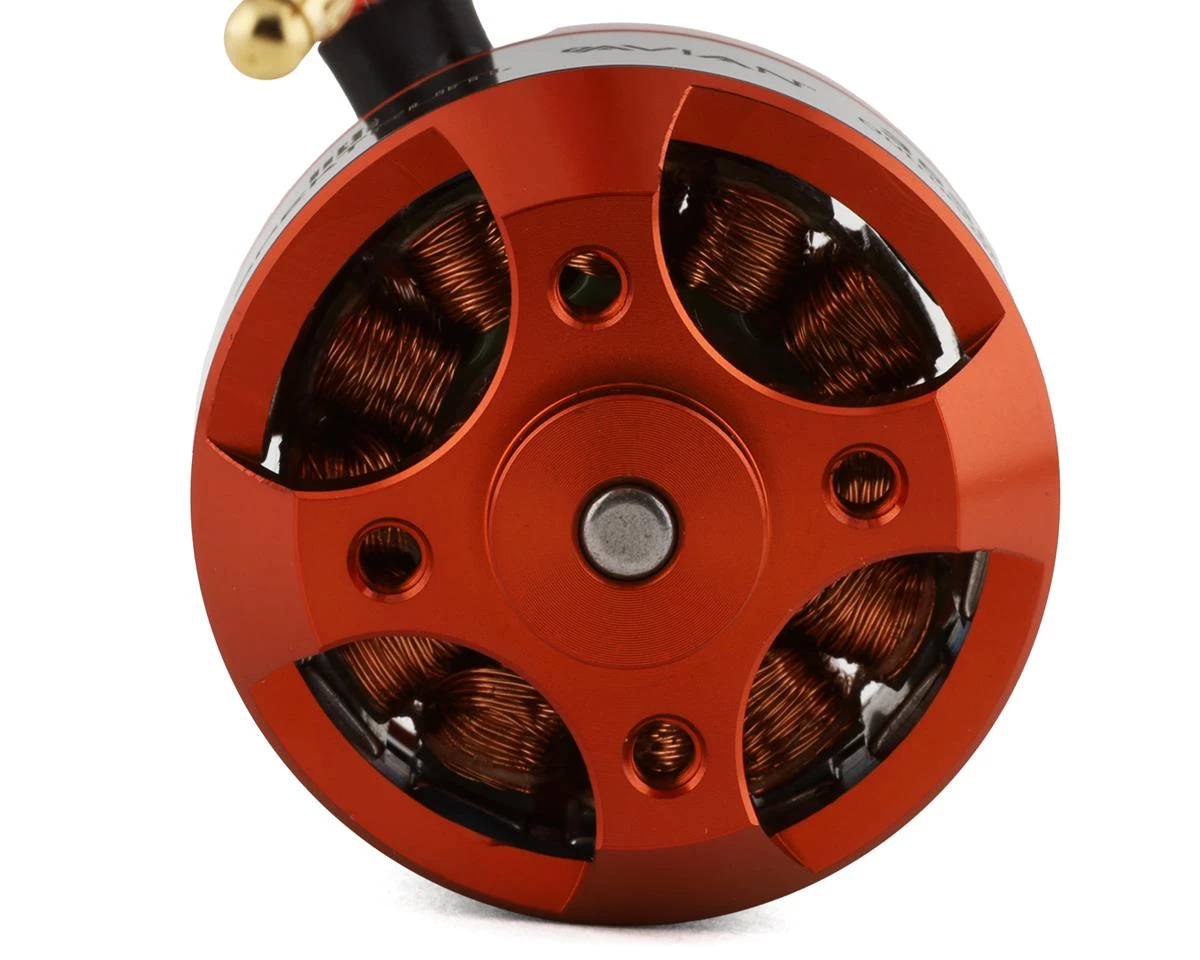

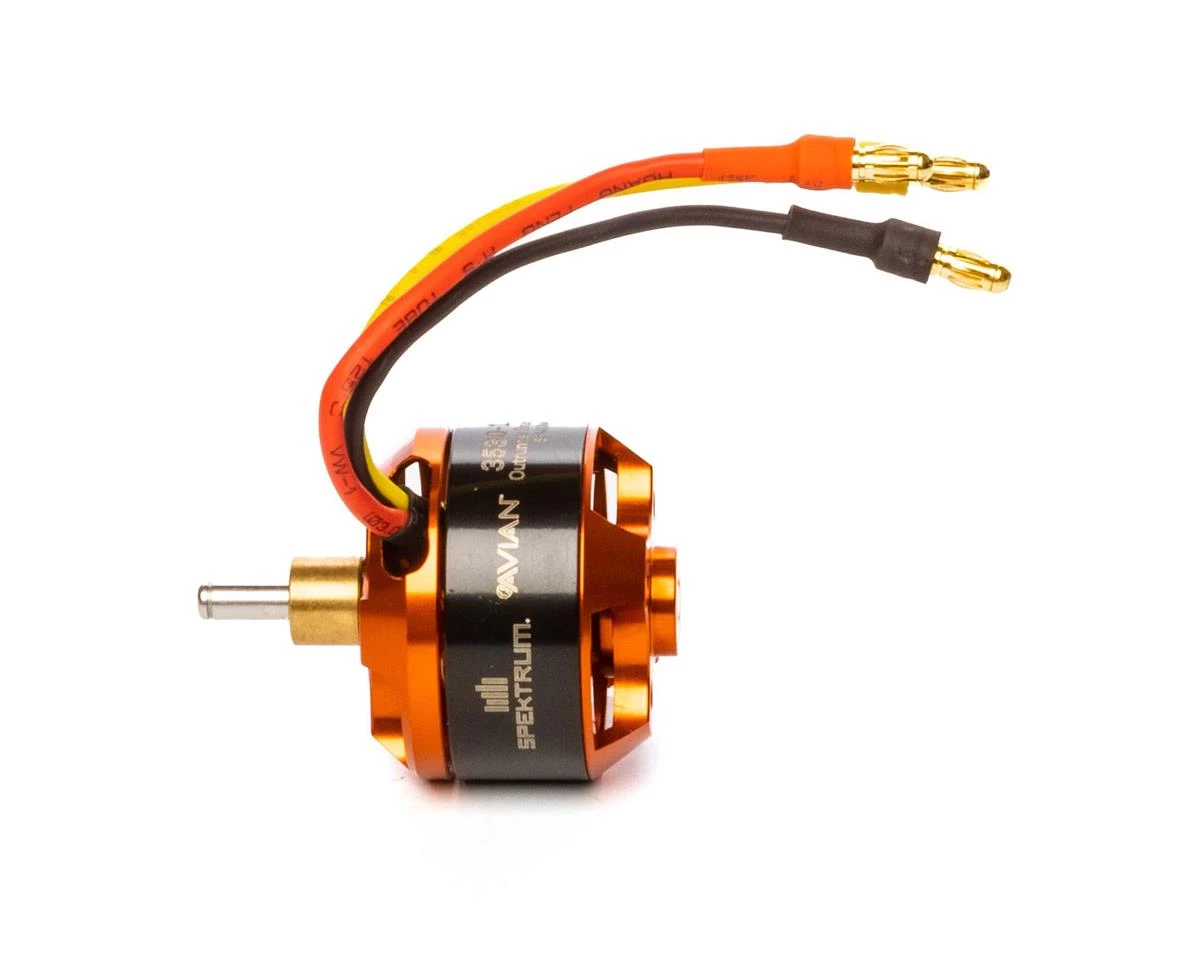

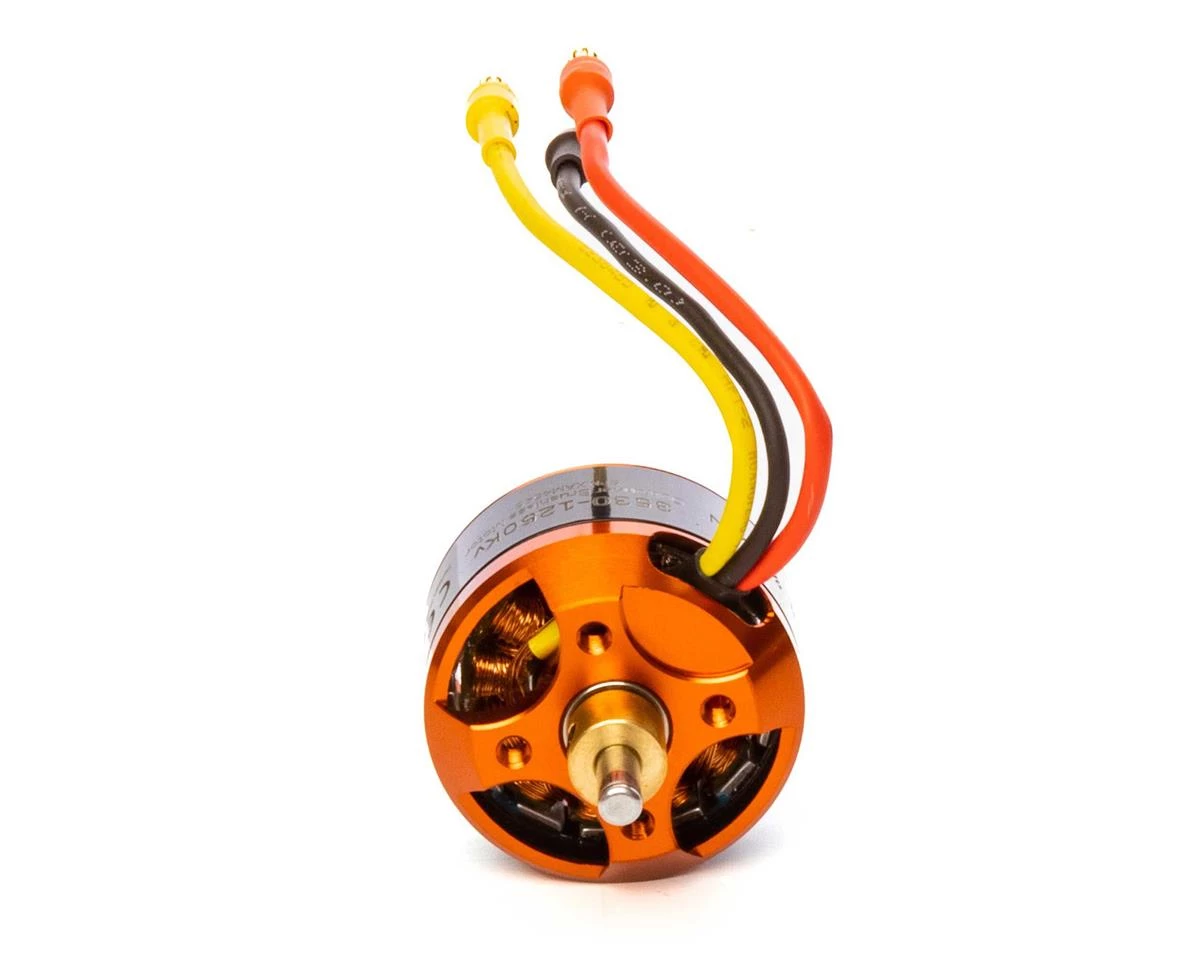

Spektrum RC Avian 3530 Brushless Outrunner Motor (1250Kv)

The Spektrum Avian 3530 – 1250Kv Brushless Outrunner Motor offers a combination of superior performance, high reliability and user-friendly features that make it an excellent choice for your next aircraft project. Plus, the wide selection means there’s Avian Brushless motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Benefits

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features:

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion

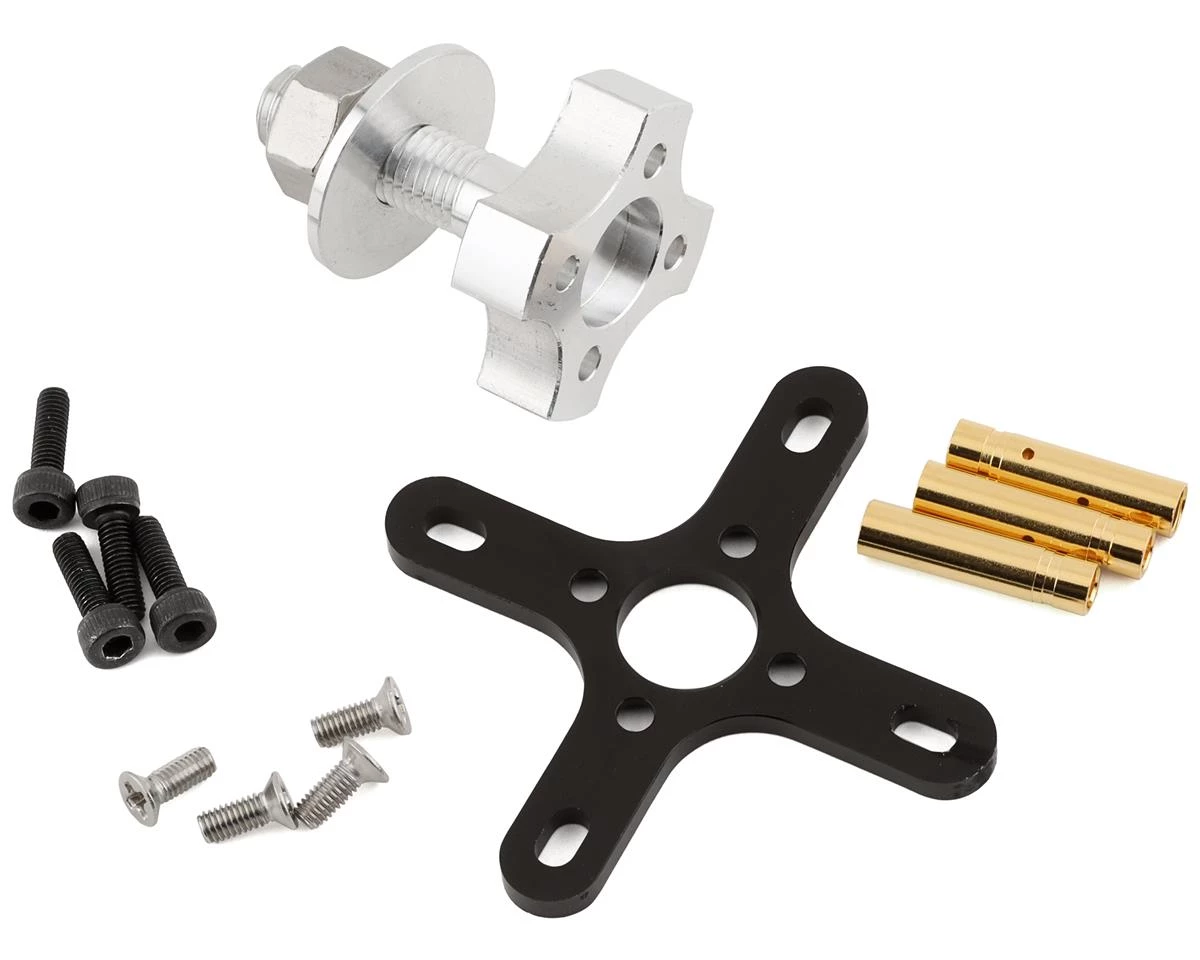

• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 35 amp ESC
• Perfect electric conversion upgrade for .10 size glow combustion power systems

Specifications:
Connector Type: 3.5mm Bullet
Input Voltage: 7.4 – 11.1V (2 – 3S LiPo)
Recommended Model Flying weight: 3D 905g (2 lbs) – Sport 1360g (3 lbs)
Maximum Burst Current: 35A
Maximum Continuous Current: 30A
Constant Watts: 220W
Burst Watts: 350W
Motor Type: Brushless – Outrunner
Number of Poles: 14
Outer Diameter: 1.38″ (35 mm)
Product Length: 1.18″ (30 mm)
Product Weight: 2.5oz (71g)
Recommended Prop Range: 10×4.5 – 10×7 electric
RPM/Volt: 1250Kv
Shaft Diameter: 0.16″ (4 mm)
Shaft Length: 0.65″ (17 mm)
