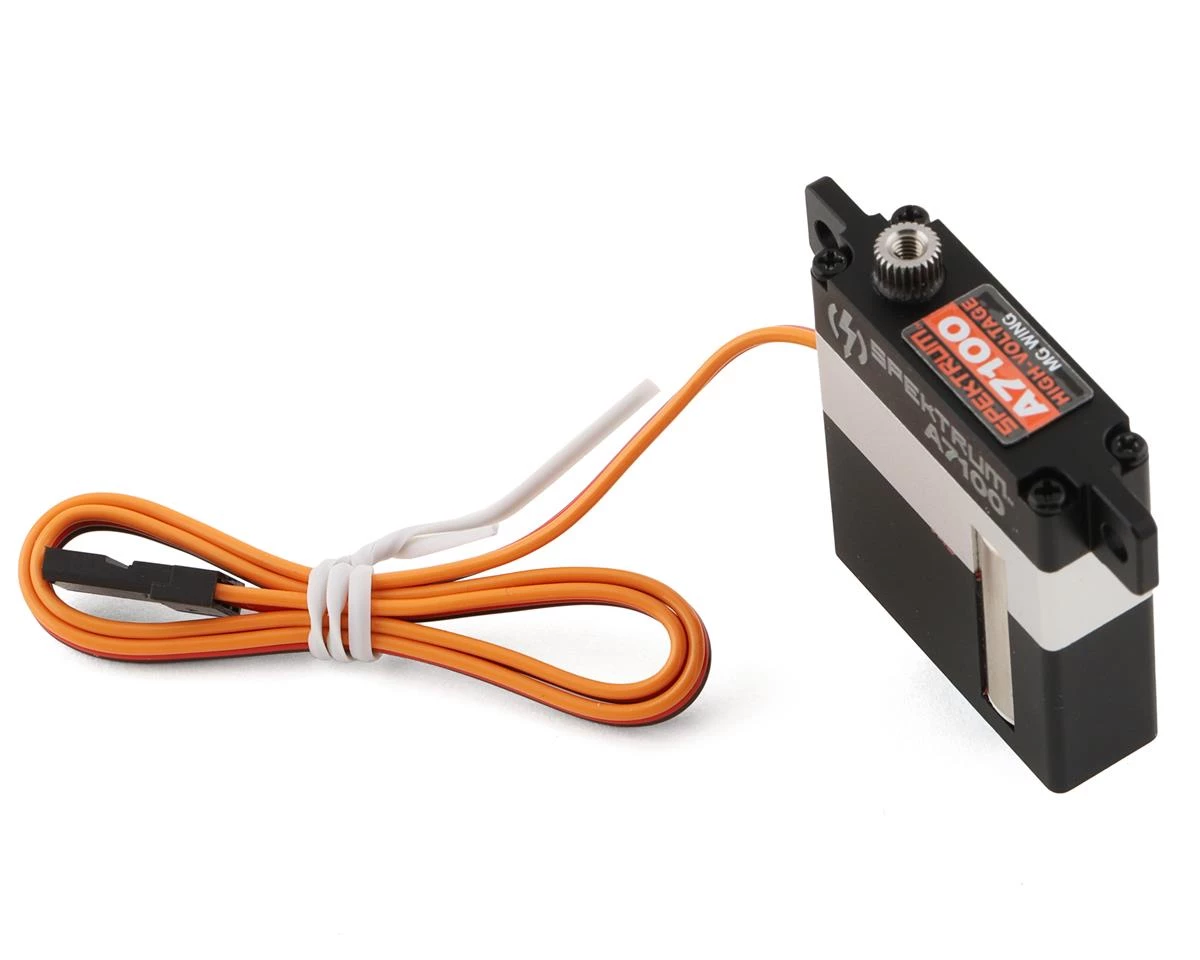

Spektrum RC A7100 MT/MS Metal Gear Wing Servo (High Voltage)
Original price was: $99.99.$86.00Current price is: $86.00.
- 7-Day Returns, 100% Quality
- The quality solution for all your needs.
- Shop with Zero Worries
- Unbeatable Quality Guaranteed
The Spektrum RC A7100 MT/MS Metal Gear Wing Servo is a great option for high performance sail planes and other thin wing applications. High voltage capable, this servo can produce 115oz of toque at 0.078sec/60° with 8.4V input. A low wear metal gear drive train is supported by a single ball bearing for smooth operation. Completing the build is a full aluminum case for added reliability and durability. Take to the skies with the Spektrum RC A7100 servo.
- Bearing supported drive train helps maximize smooth operation
- Operating Frequency: 200hz to 333hz
- Low wear and tightly meshed all metal gear train
- Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
- Specifically designed for thin wing aircraft models and sailplanes
- Over Current and Temperature protection
- Aluminum servo case helps keep operating temperatures low
- High Voltage (HV) capable (4.8-8.4v input range)
- Input Voltage: 4.8V-8.4V
- Overload Protection: No
- Motor Type: Brushed
- Product Weight: 1.0oz (28g)
- Spline Count: 25 – Tooth
- Deadband: <1us
- Servo Speed:
- 6.0V: 0.091 sec/60 deg
- 7.4V: 0.086 sec/60 deg
- 8.4V: 0.078 sec/60 deg
- Torque:
- 6.0V: 96 oz-in (6.9kg-cm)
- 7.4V: 100 oz-in (7.2kg-cm)
- 8.4V: 115 oz-in (8.3kg-cm)
- Bearing: Single BB
- Length: 1.18″ (30 mm)
- Width: 0.39″ (10 mm)
- Height: 1.38″ (35 mm)
- Programmable: No
- Servo Type: Digital
- Gear Type: Metal

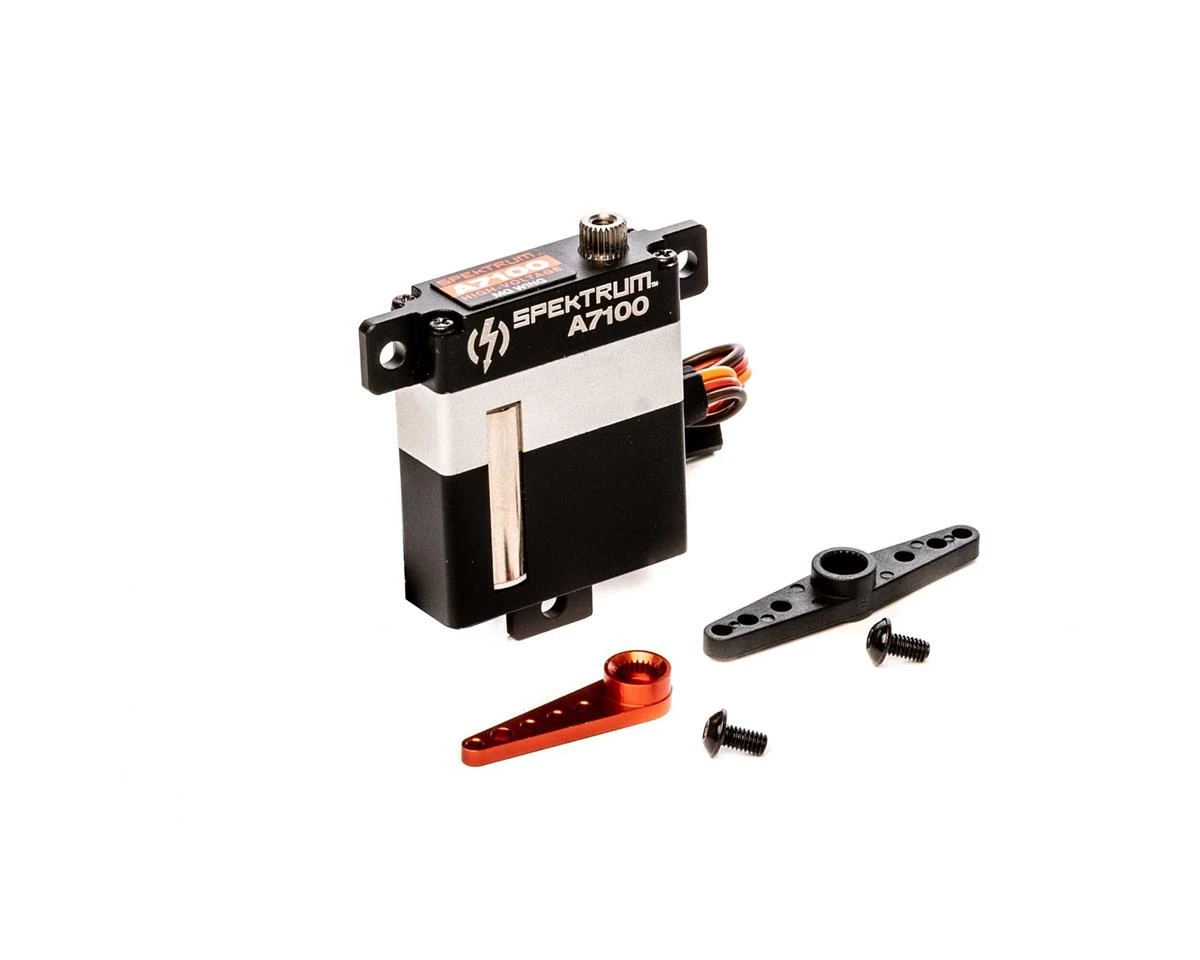

- (1) A7100 Wing Servo

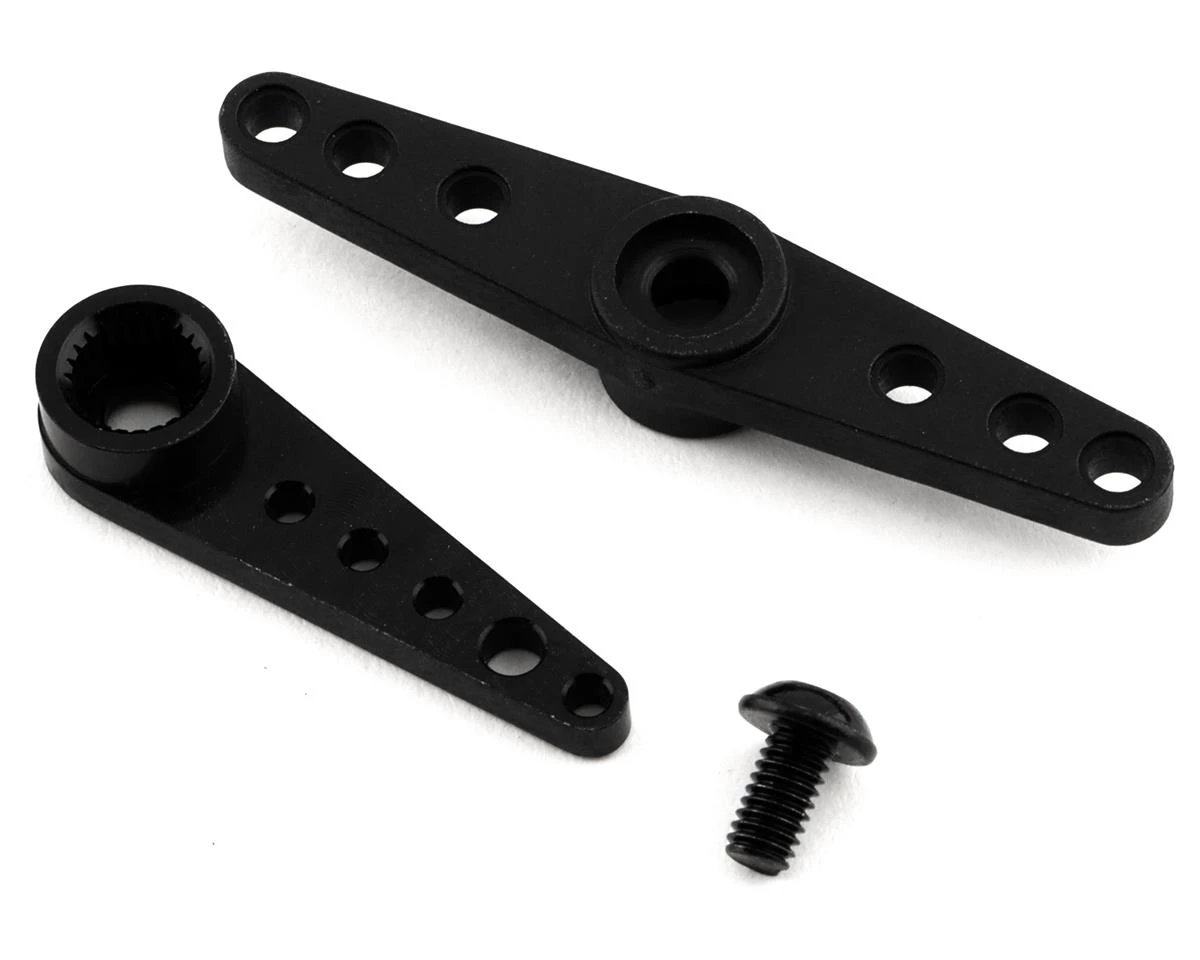

- (1) Double-sided Plastic Servo Arm
- (1) Red Anodized Aluminum Servo Arm
