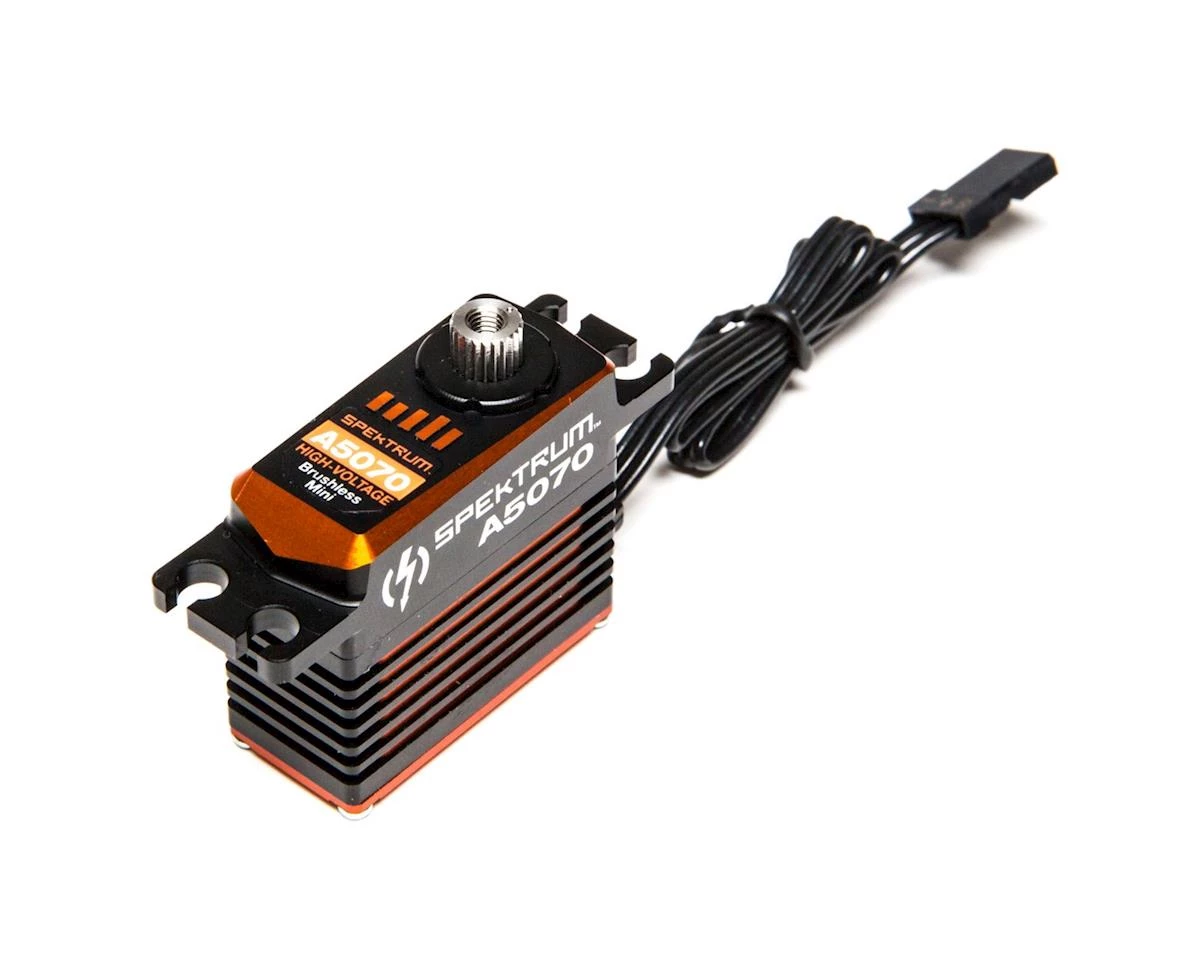

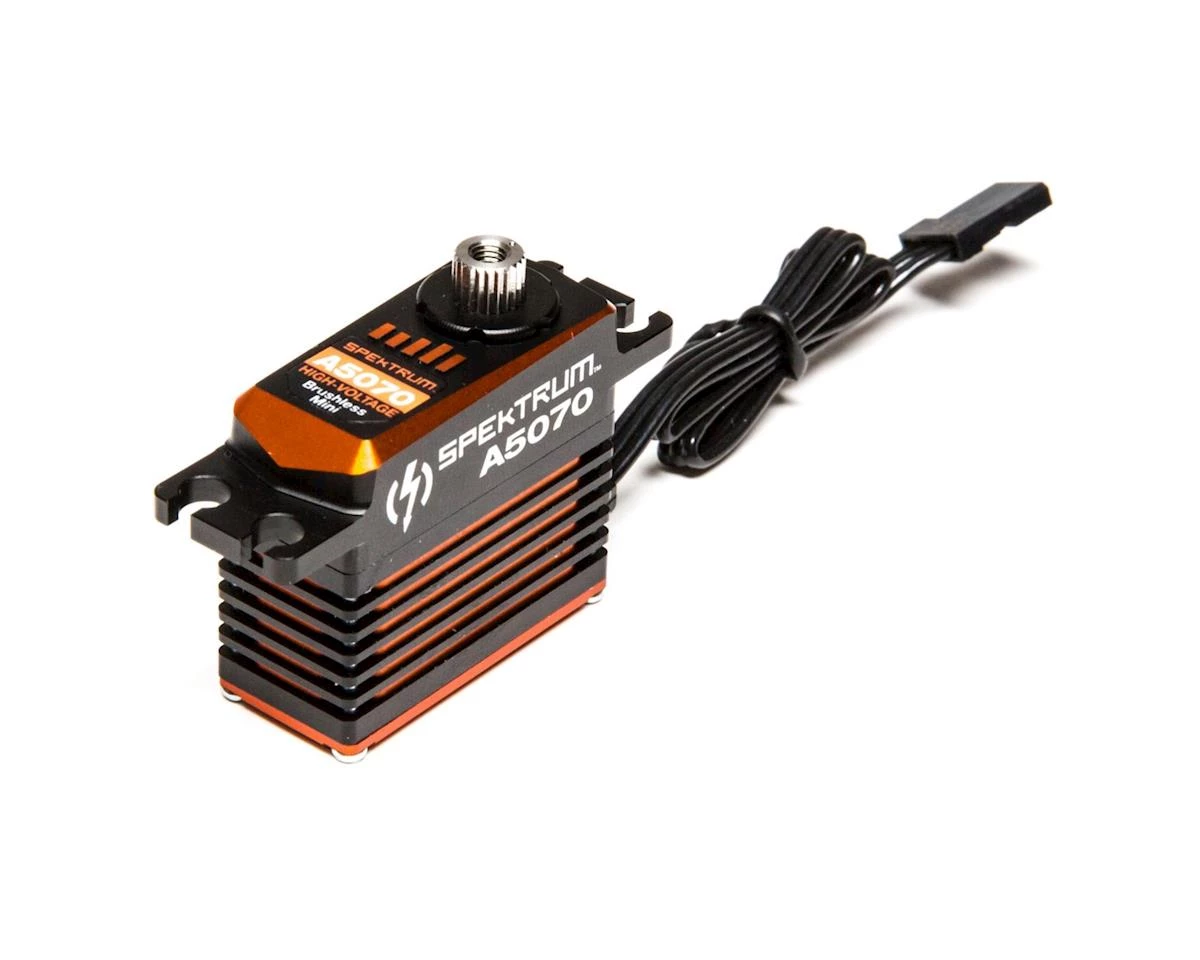

Spektrum RC A5070 Digital High Torque/Speed Mini Brushless Metal Gear Servo (High Voltage)
Original price was: $149.99.$70.00Current price is: $70.00.
- 7-Day Returns, 100% Quality
- The quality solution for all your needs.
- Shop with Zero Worries
- Unbeatable Quality Guaranteed
The Spektrum RC A5070 Digital High Torque/Speed Mini Brushless Metal Gear Servo is a finely tuned High Voltage servo. With brushless technology this servo is able to offer a super smooth, high speed performance with more efficiency than conventional servo motors. Featuring an all aluminum case that provides better durability and heat dissipation and precision metal gears to allow for accurate control over a given control surface. High voltage capabilities allow for this servo to be used in a wide range of projects.
Features:
- High torque both on HV and non-HV applications
- Allows BECs of adjustable BEC ESCs to be set higher to increase performance
- Acts as a heat sink for the motor and ESC
- Low deadband, high resolution, with impressive holding torque for unmatched performance
- Durable high performance finish
Specifications:
- Connector Wire Length: 11.8 in (300mm)
- Application: Airplane or Heli
- Servo Size Category: Mini and Micro
- Gear Type: Metal
- Product Length: 1.32 in (33.5mm)
- Product Width: 0.59 in (14.9mm)
- Product Height: 1.16 in (29.4mm)
- Product Weight: 1.4 oz (40g)
- Servo Operating Voltage: 6.0 – 8.4V (HV)
- Speed:
- 6.0V: 0.094 sec/60 deg
- 8.4V: 0.078 sec/60 deg
- Torque:
- 6.0V: 146.43 oz-in
- 8.4V: 190.58 oz-in
- Deadband: 2µs
- Overload Protection: Yes
- Programmable: No
- Bushing Or Bearing: Dual Ball Bearing
- Servo Type: Digital

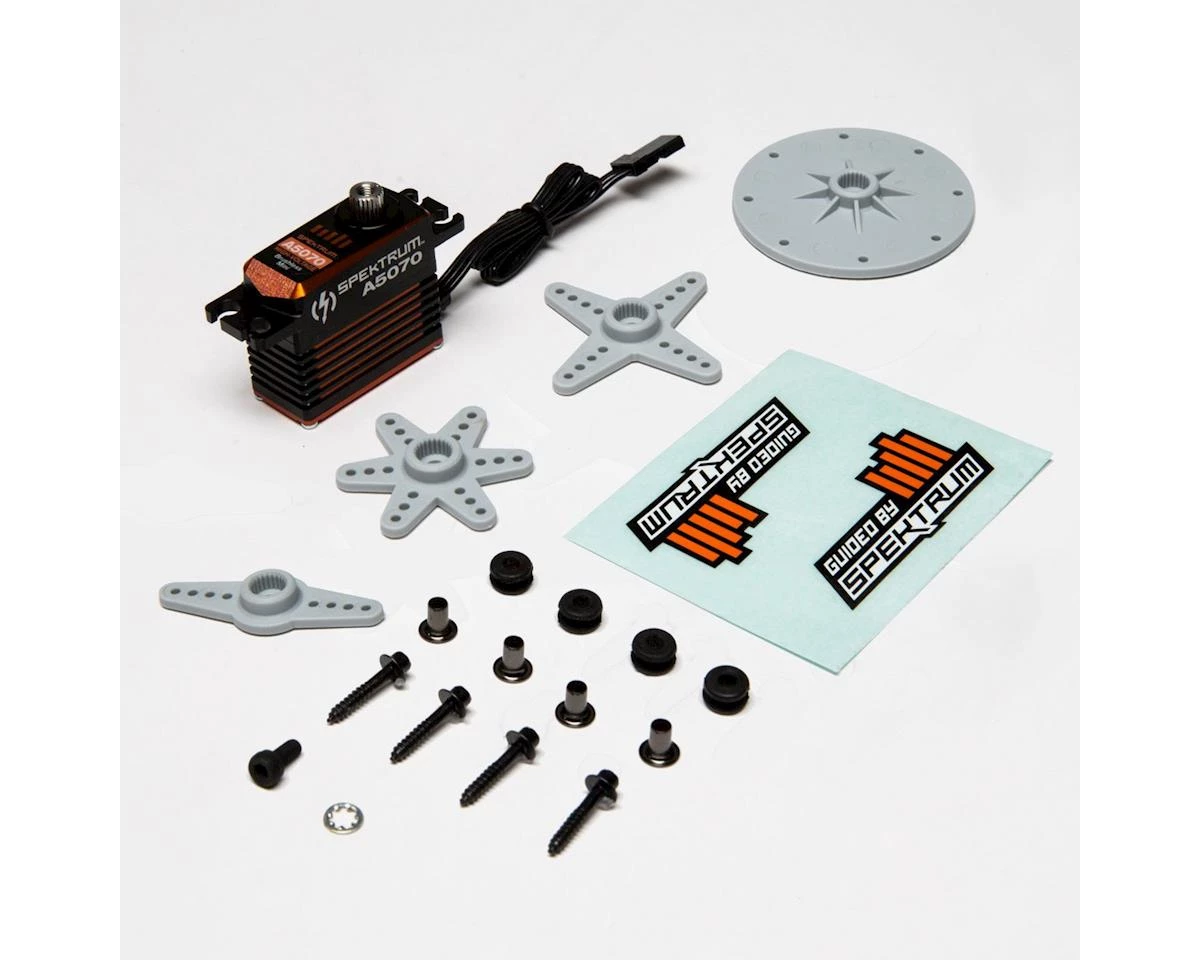

Included:
- (1) A5070 brushless servo
- (4) Misc. Servo horns
- Mounting hardware
