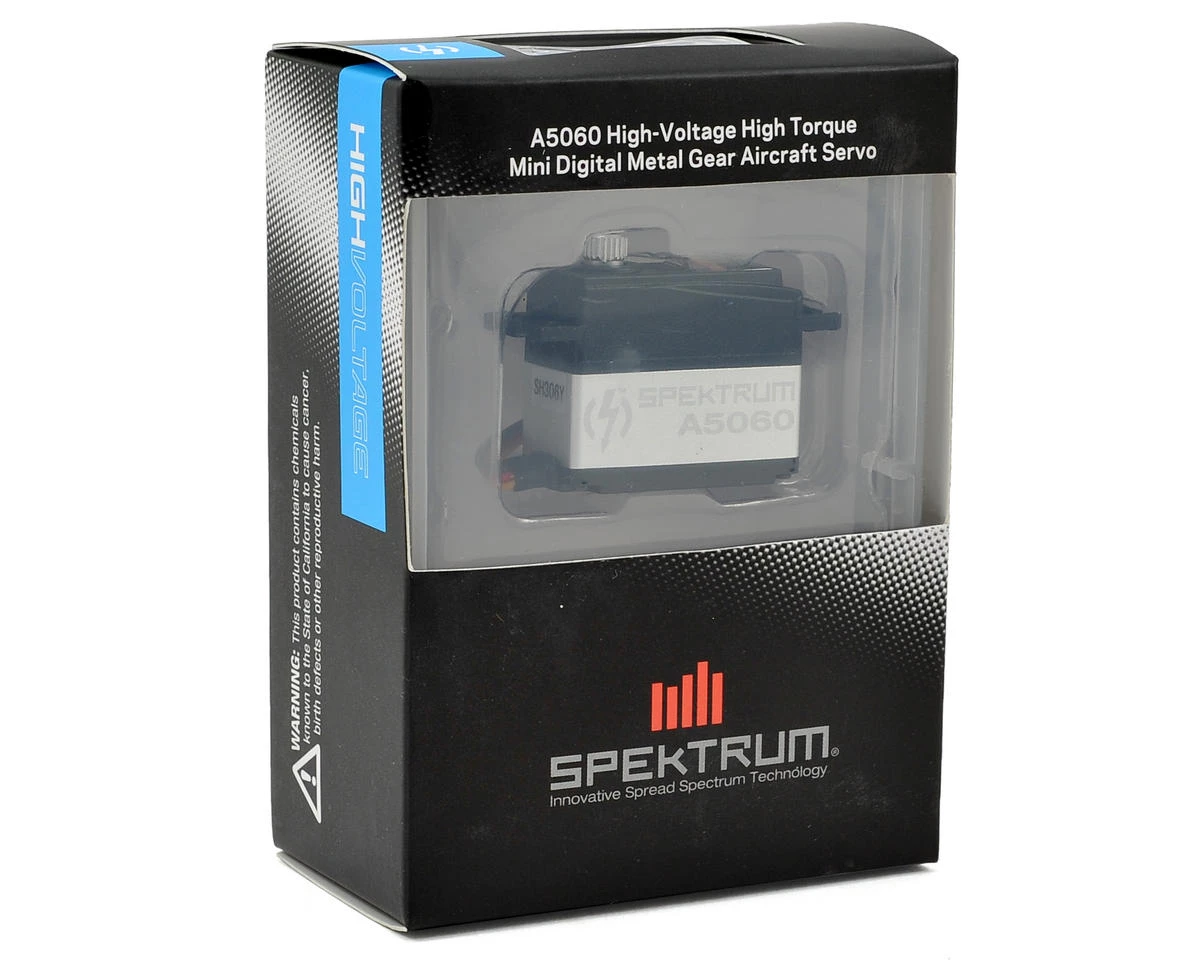

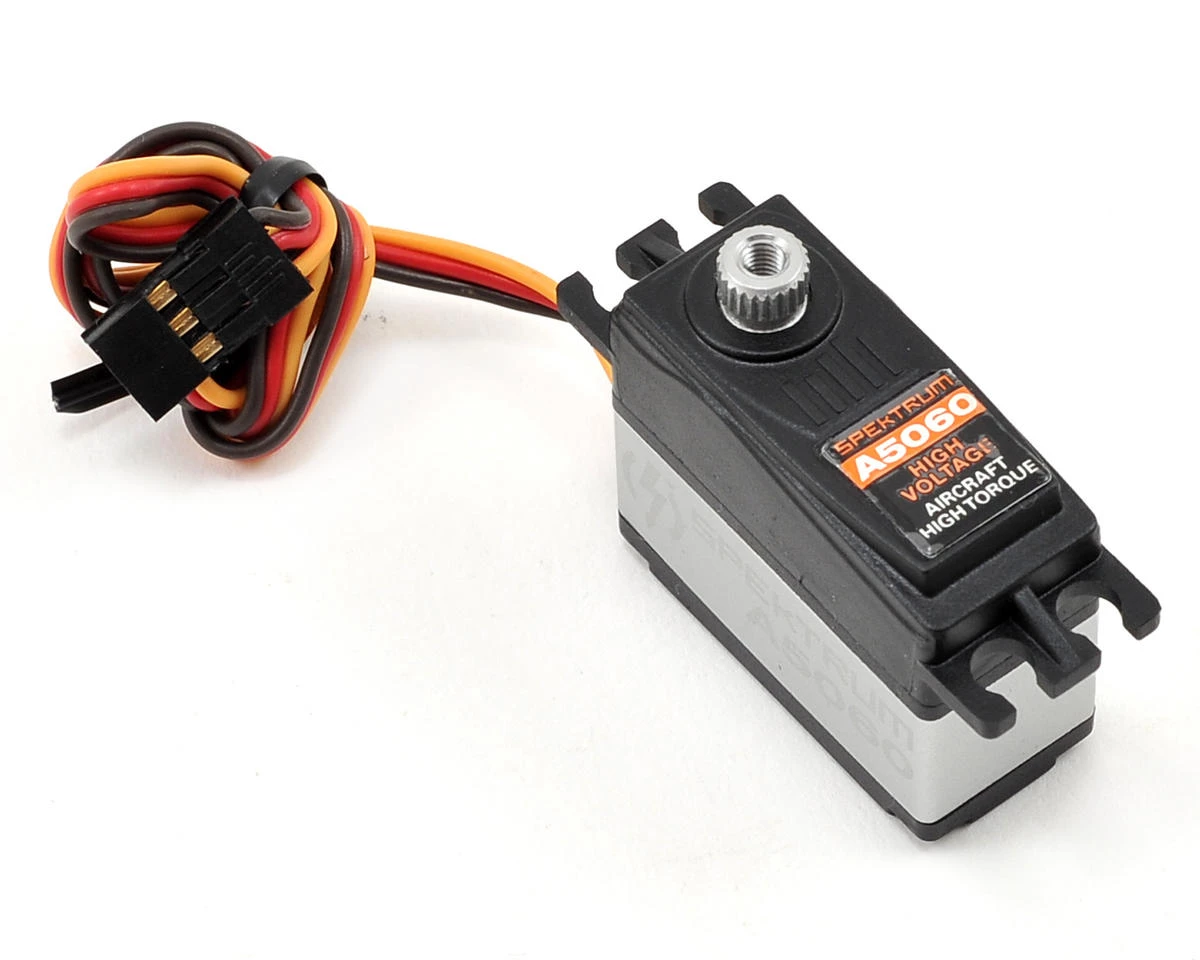

Spektrum RC A5060 Metal Gear Mini Digital Aircraft Servo (High Voltage)

This is the Spektrum A5060 High Voltage Metal Gear Mini Digital Aircraft Servo. The A5060 delivers big servo performance in a small package. Perfectly sized for 25-32 size aircraft, the A5060 helps to keep the weight down without sacrificing performance. Able to deliver 118 oz-in of torque and 0.11 transit speed at 7.4V, the A5060 will deliver the power, precision and durability you have come to expect from Spektrum servos.

Specifications:

• Size Category: Minis and Micros
• Type: Digital
• Application: 25- to 32-size aircraft
• Torque:
• @ 6.0V: 87 oz-in (6.3 kg-cm)
• @ 7.4V: 118 oz-in (8.5 kg-cm)
• Speed:
• @ 6.0V: 0.15 sec/60 deg
• @ 7.4V: 0.11 sec/60 deg
• Length: 1.30 in (32.8mm)
• Width: 0.58 in (13.7mm)
• Height: 1.10 in (27.4mm)
• Weight: 0.92 oz (26 g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Coreless
• Connector Type: Universal
• Gear Type: Metal
• Voltage: 6.0 – 7.4V (High Voltage)

This product was added to our catalog on August 1, 2013
